Product details

Regulated extraction and filtration of surgical smoke during endoscopic procedures
Parallel suction of smoke gas and liquids
Suction power from the sterile field individually adjustable
Activation via foot switch or on the unit
Can be individually integrated into existing systems (KARL STORZ endoflators, HF-devices, motor system, ultrasonic generator)

Brand	S-PILOT®
Power supply	100 – 240 VAC

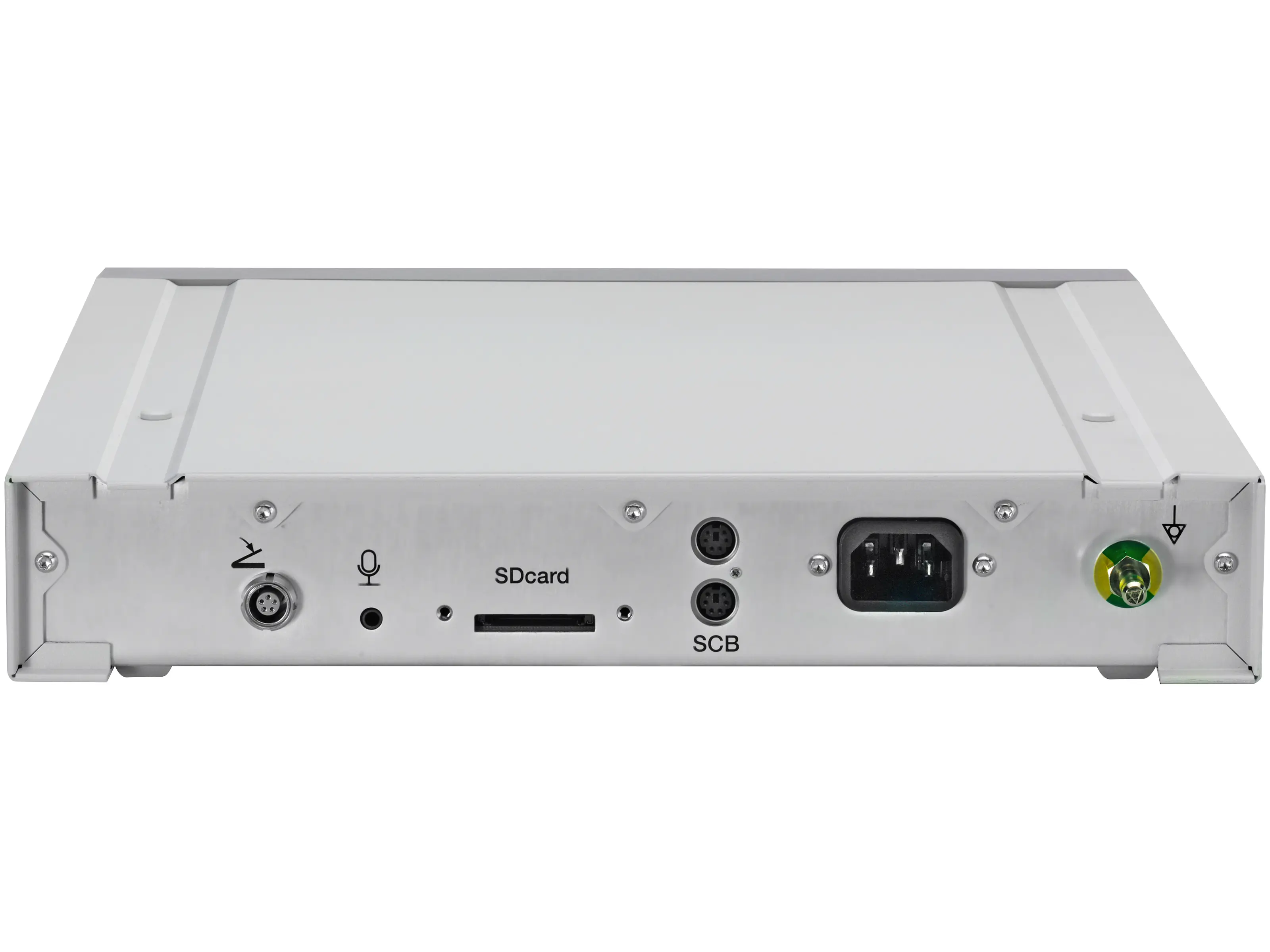

Slot for SD memory card	1
Serial port for connecting cable	1
Connection socket footswitch	1
Line frequency	50/60 Hz
Power input AN	7.5 VA
Power input maximum	43 VA
Power consumption standby	3 VA
Unit communication SCB	yes
Wipe disinfection	yes
Degree of safety	CF
IP protection class	IP21
Electrical protection class	protection class 1
System requirements for SCB	SCB control NEO system with integrated SCB control NEO (Software Release 20090001-46 or higher)
SCB connection	2
Width	305 mm
Height	55 mm
Depth	356 mm
Weight	1.9 kg
Electrical protection class	1
