Item no: UP501

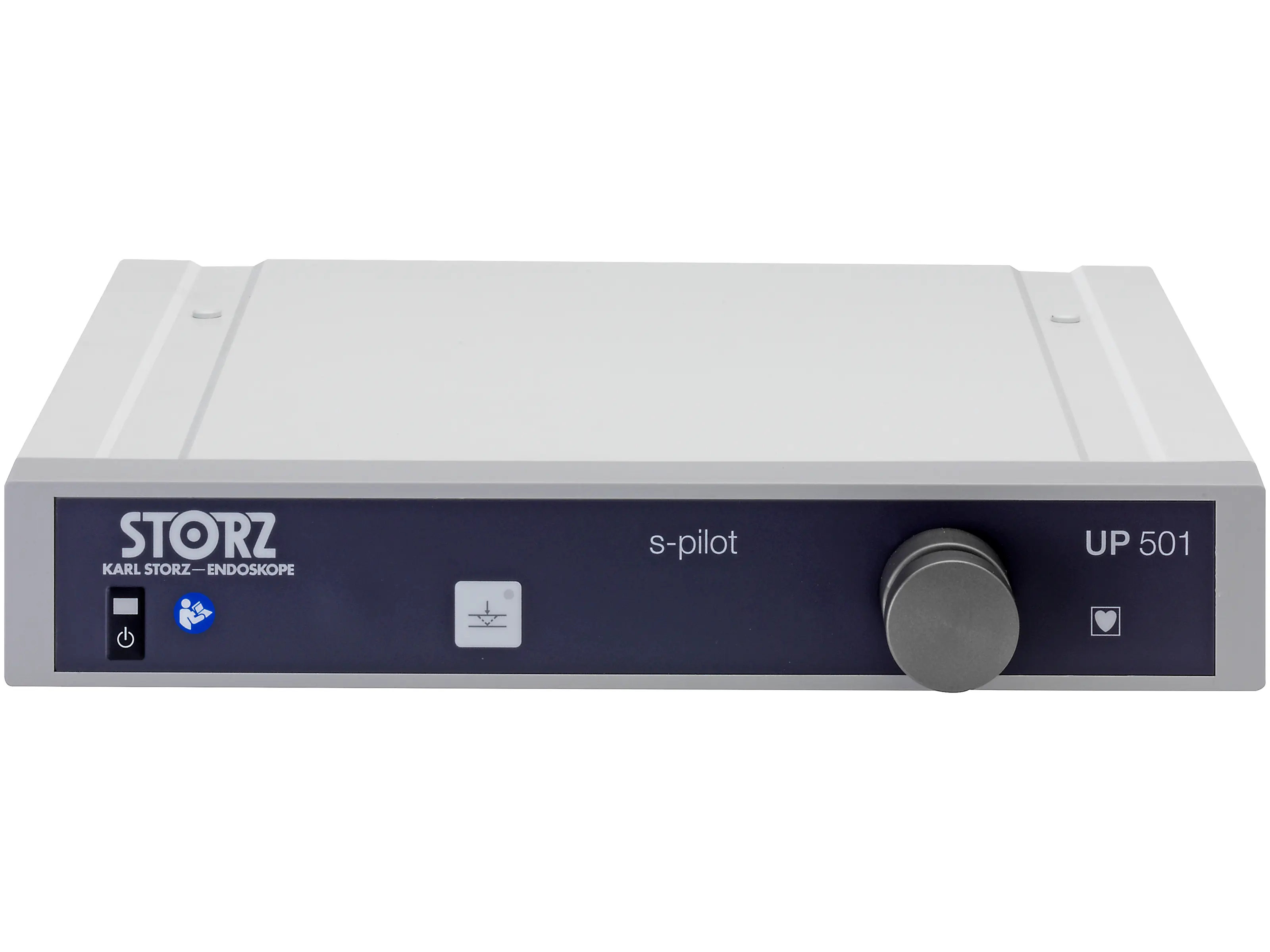

S-PILOT

Quantity:
  • Technical details
  • Documents & Films
  • Product group / field of application
BrandS-PILOT®
Power supply100 – 240 VAC
Slot for SD memory card1
Serial port for connecting cable1
Connection socket footswitch1
Line frequency50/60 Hz
Power input AN7.5 VA
Power input maximum43 VA
Power consumption standby 3 VA
Unit communication SCByes
Wipe disinfectionyes
Degree of safetyCF
IP protection classIP21
Electrical protection classprotection class 1
System requirements for SCBSCB control NEO system with installed SCB control NEO Software Release 20090001-46 or higher
SCB connection2
Width305 mm
Height55 mm
Depth356 mm
Weight1.9 kg
