Item no: UI500

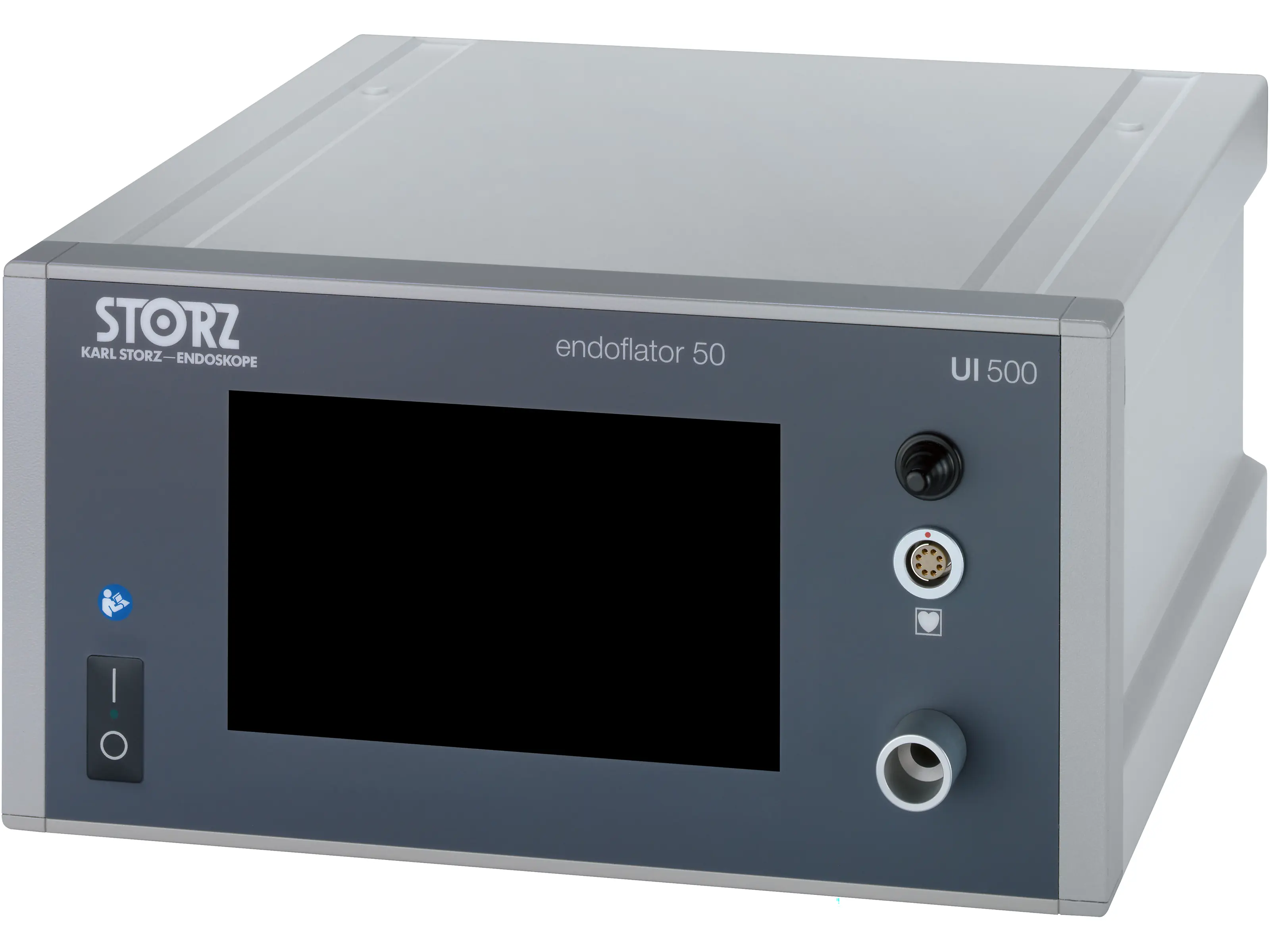

ENDOFLATOR 50

Quantity:
  • Technical details
  • Documents & Films
  • Product group / field of application
BrandENDOFLATOR®
Intracavitary pressure (mmHg)operating mode high flow: 1…30; operating mode pediatrics: 1…15
Flow l/minoperating mode high flow: 1…50; operating mode pediatrics: 0.1…15
Hose heatingYes
Wipe disinfectionyes
Power supply100 – 240 VAC
Line frequency50/60 Hz
Average power input during flow 40 l/min (input pressure 60 bar) at 240 VAC (Watt)230 Watt
Average power input during flow 40 l/min (input pressure 60 bar) at 100 VAC (Watt)130 Watt
Max. current consumption at 240 VAC1.8
Max. current consumption at 100 VAC1.3
Gas input (max. pressure)100
System requirements for SCBSCB control NEO system with integrated SCB control NEO Software Release 20090001-45 or higher
Unit communication SCByes
SCB connection2
Insufflation connection1
Connection for patient tube heating1
Room temperature sensoryes (1)
Gas connection on the back of the device American
Control via touch screenyes
Width305 mm
Height164 mm
Depth315 mm
Weight7.8 kg
Degree of safetyCF
IP protection classIP21
Electrical protection classprotection class 1
