Item no: UP501



Product details

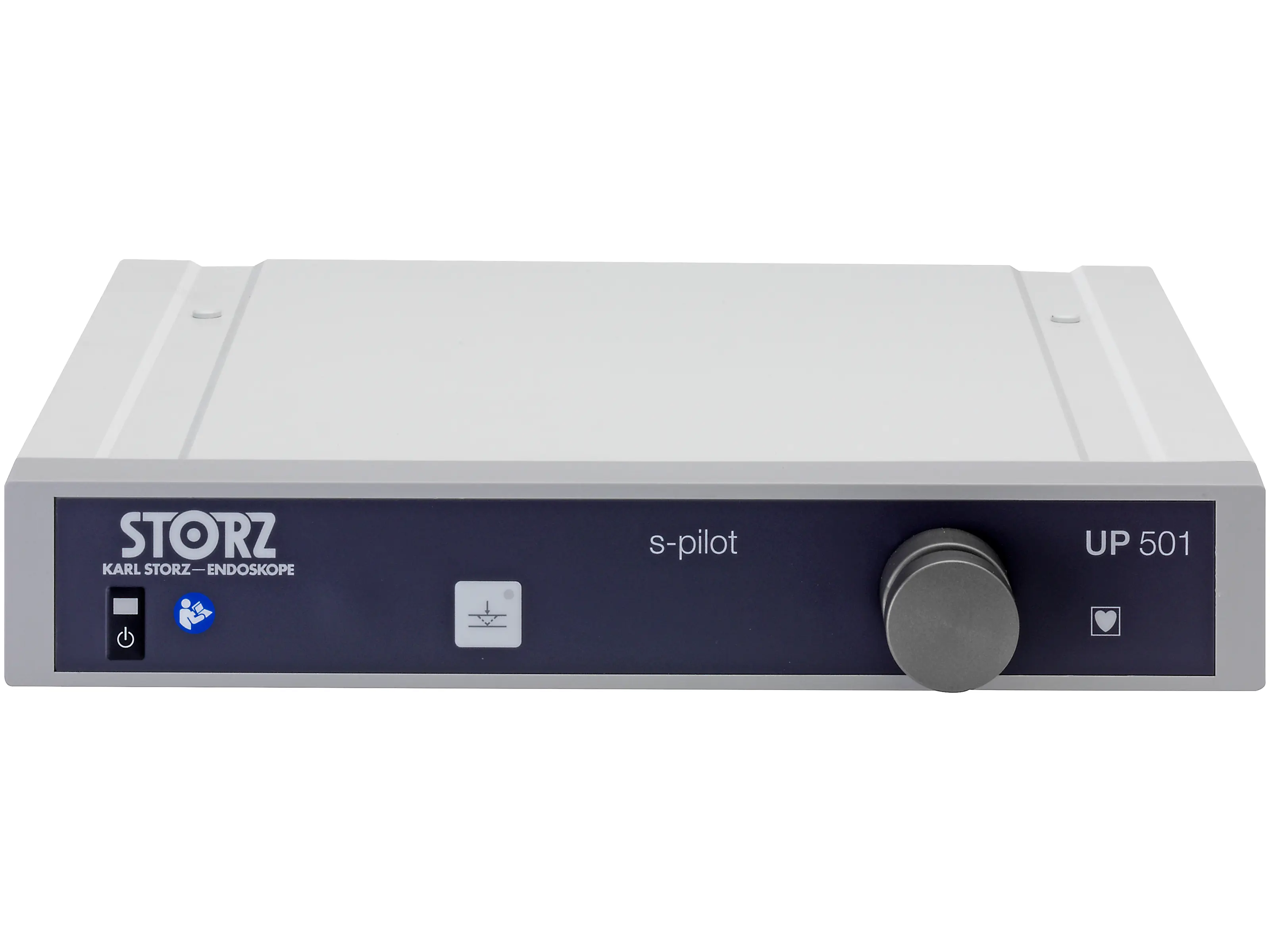

s-pilot® – The solution for your smoke management

  • Regulated extraction and filtration of surgical smoke during endoscopic procedures
  • Parallel suction of smoke gas and liquids
  • Suction power from the sterile field individually adjustable
  • Activation via foot switch or on the unit
  • Can be individually integrated into existing systems (KARL STORZ endoflators, HF-devices, motor system, ultrasonic generator)
  • Technical details
  • Documents & Films
  • Product group / field of application
Power supply100 – 240 VAC

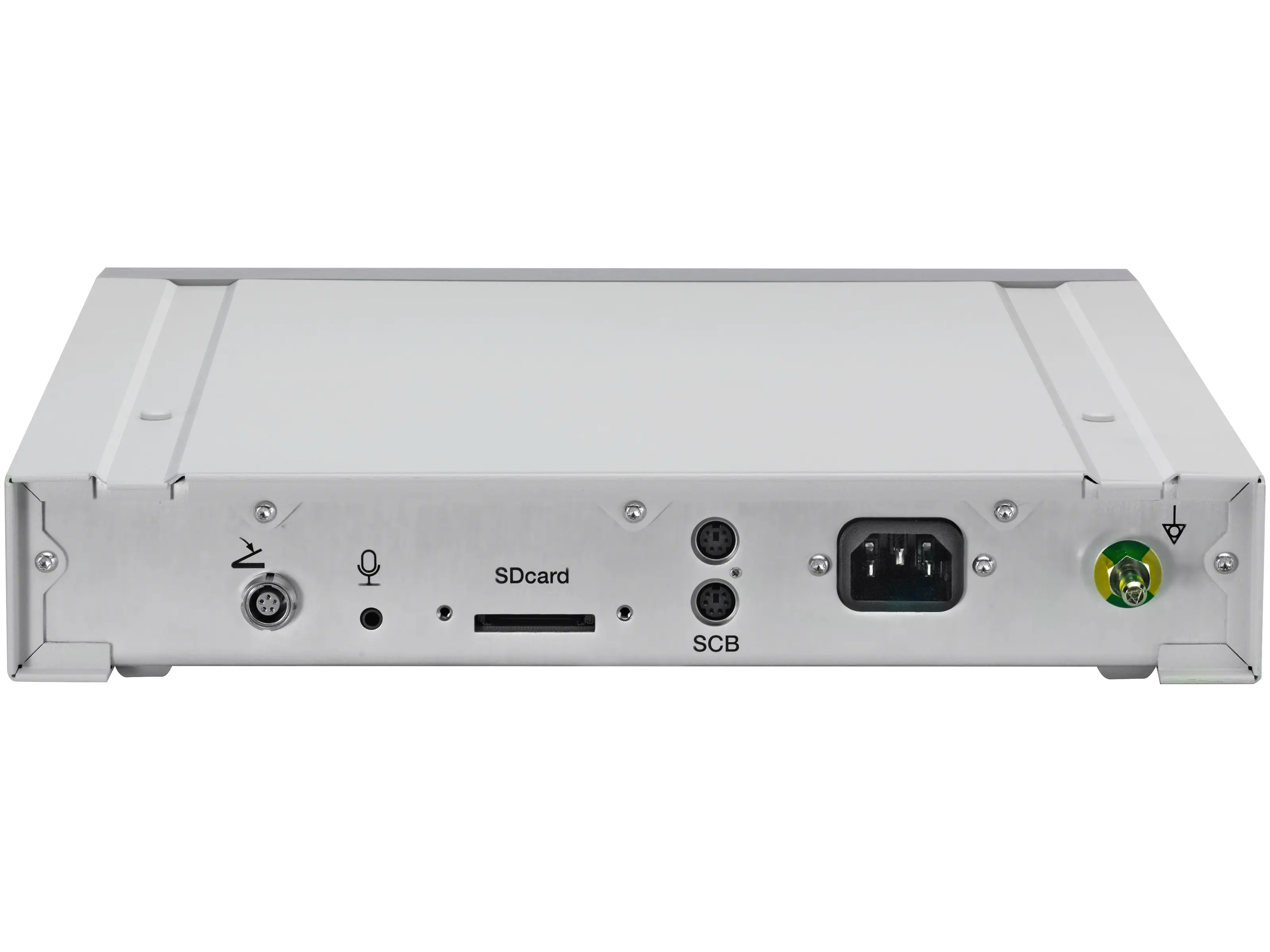

Slot for SD memory card1
Serial port for connecting cable1
Connection socket footswitch1
Line frequency50/60 Hz
Power input AN7.5 VA
Power input maximum43 VA
Power consumption standby 3 VA
Unit communication SCByes
Wipe disinfectionyes
Degree of safetyCF
IP protection classIP21
Electrical protection classprotection class 1
System requirements for SCBSCB control NEO system with installed SCB control NEO Software Release 20090001-46 or higher
SCB connection2
Width305 mm
Height55 mm
Depth356 mm
Weight1.9 kg
