Neurosurgery

Minimally invasive technologies are opening up new options in the field of neurosurgery, especially in the diagnosis and therapy of defects of the intracranial ventricles and the skull base. Endoscopes with different viewing angles allow a view of the anatomy of the brain, which is not possible with a microscope. The use of special endoscopes, with or without working channels, and dedicated micro instruments enable the surgeon to perform more advanced operative interventions.

A wide variety of interventions can be performed by an entirely endoscopic procedure, e.g., the removal of intraventricular cysts or tumors or the creation of the transnasal access to the pituitary gland and the skull base.
Another field of application is the so-called endoscopically assisted micro­neurosurgery which utilizes endoscopes to perform high-risk interventions in order to inspect areas that cannot be directly visualized and thus greatly enhances the safety of neurosurgical interventions.

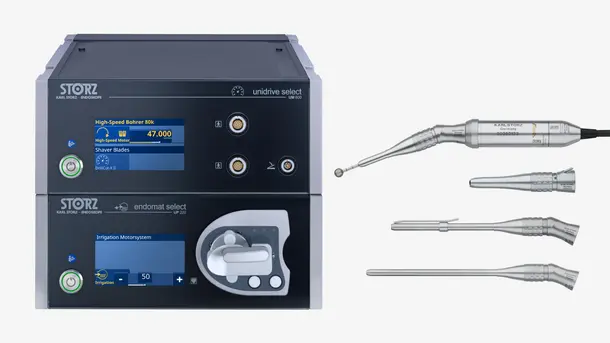

KARL STORZ offers a wide range of instruments for intracranial interventions as well as for approaches to and procedures in the skull base area, complemented with a special pediatric portfolio. The scope of products is rounded off with a high-speed motor system with a multitude of drill, craniotomy and perforator handpieces.

Highlights

Multimodal Visualization – NIR/ICG Vascular Fluorescence Endoscopy in Neurosurgery

The KARL STORZ NIR/ICG Vascular Imaging System enables live visualization of structural landmarks beneath the tissue surface, with no latency, using near-infrared (NIR) imaging to detect indocyanine green (ICG).

Neurosurgeons may benefit from enhanced endoscopic visualization of patient anatomy using NIR to detect ICG distribution in tissue. This enables intraoperative evaluation of tissue perfusion and vascularization, identification of critical neurovascular structures, differentiation of tissue planes between lesions and adjacent structures, and visual assessment of vessels and blood flow.

The 4 mm rigid NIR/ICG neuroendoscopes are available in 0°, 30° and 45° for visible white light (VIS) and NIR illumination and imaging.

LOTTA® System for Intracranial Neurosurgery

Special Features:

  • Two unique ventriculoscopes – sheath diameter 4.5 mm and 6.8 mm – for the entire range of endoscopic intracranial procedures
  • 6° angle of view for direct visual control of instruments after exiting the working channel
  • Perfectly coordinated instrument sets for LOTTA® and Little LOTTA®
  • A wide range of support features such as, for example, possibility of rotation in the sheath and instruments with length markings for controlled application

Visualization and Instruments for Keyhole Neurosurgery

  • À la carte concept for efficient compilation of a customized instrument set

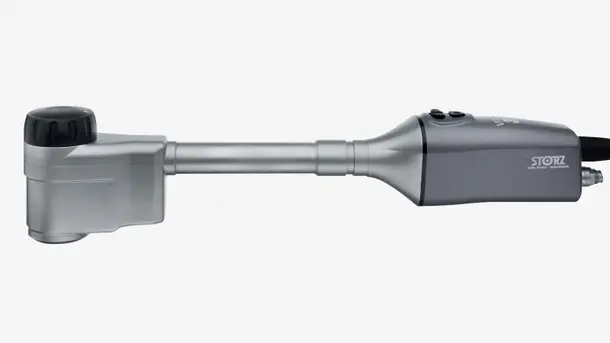

  • VITOM® 3D system – a revolutionary solution for the visualization of microsurgical and open surgical interventions

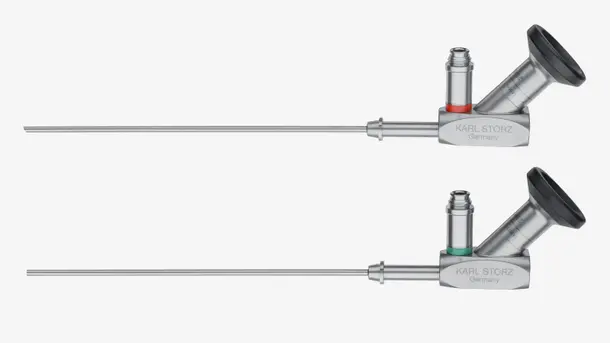

  • Angled 2D telescopes with thin diameters for space-saving keyhole neurosurgery
  • TIPCAM®1 S 3D NEURO – 3D endoscopy in 0° and 30°

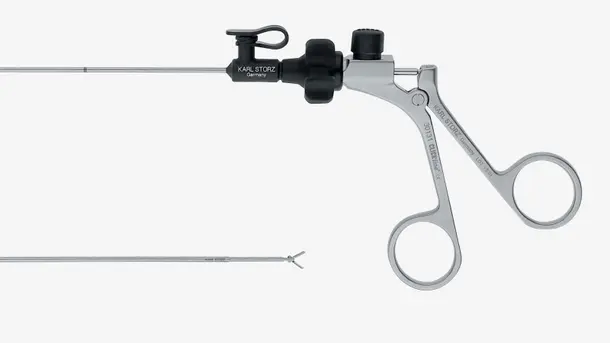

  • Delicate and ergonomic single-sheath micro instruments with straight or bayonet-shaped design

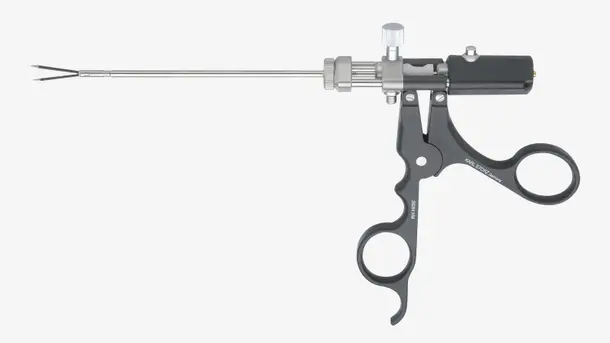

  • Unique TAKE-APART® bipolar forceps with various inserts

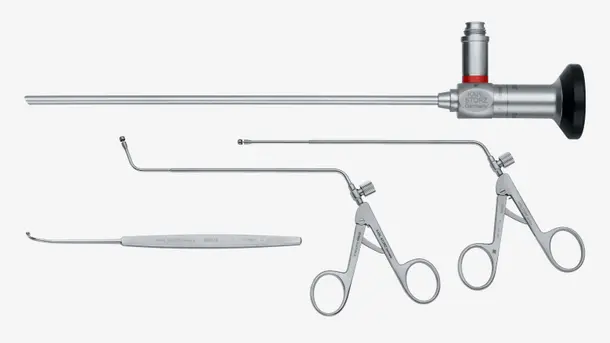

Visualization and Instruments for Endonasal Skull Base Surgery

  • À la carte concept for efficient compilation of a customized instrument set

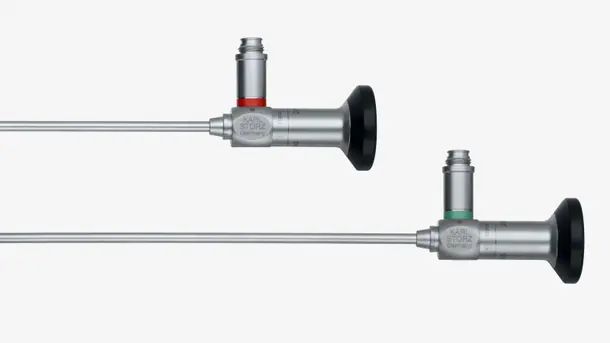

  • Diverse 2D telescopes with different directions of view
  • TIPCAM®1 S 3D NEURO – 3D endoscopy in 0° and 30°
  • Continuous vision thanks to effective lens cleaning systems
  • Wide range of standard instruments such as curettes, dissectors, scissors, hooks and knives
