Item no: 8588A

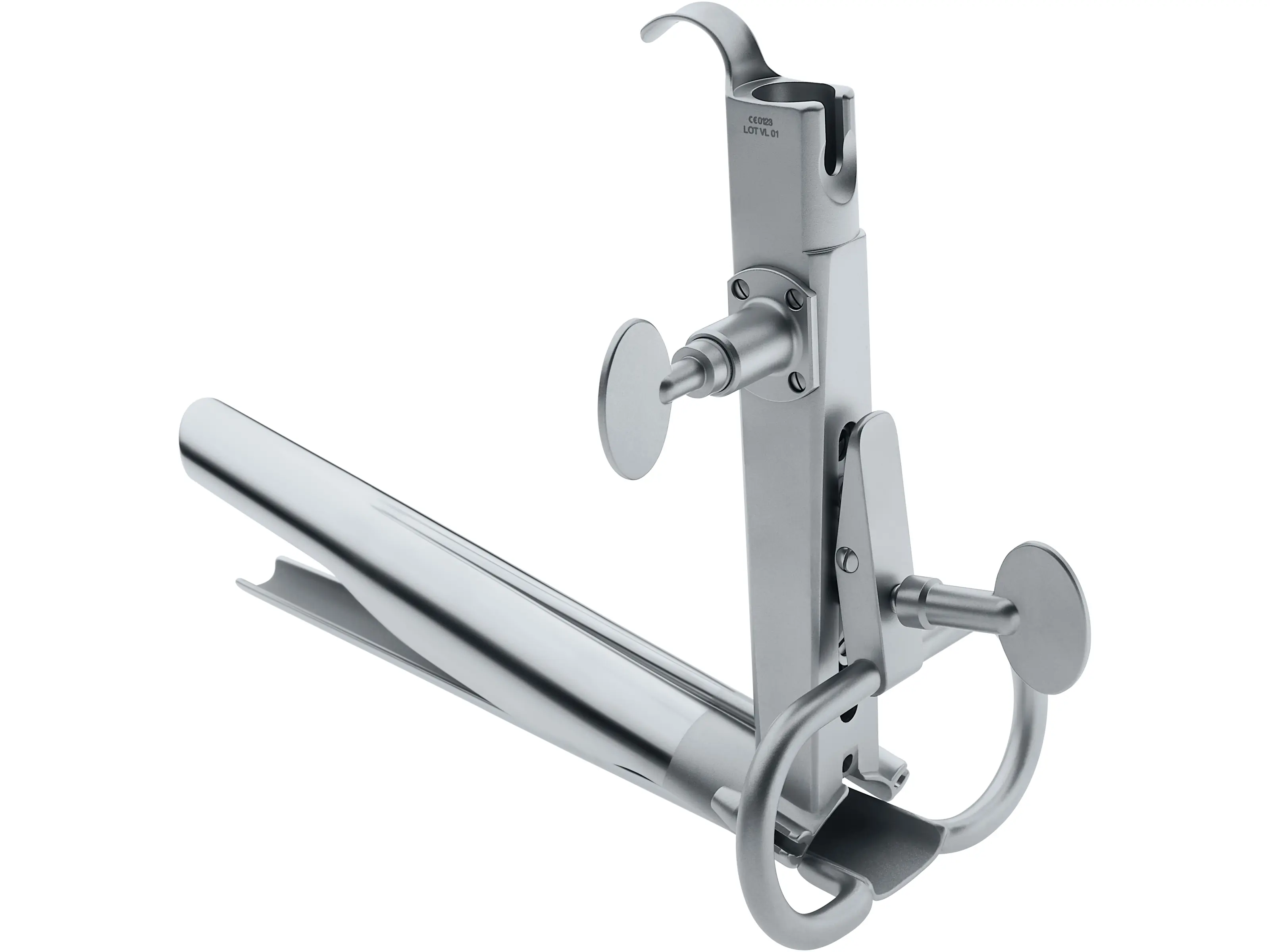

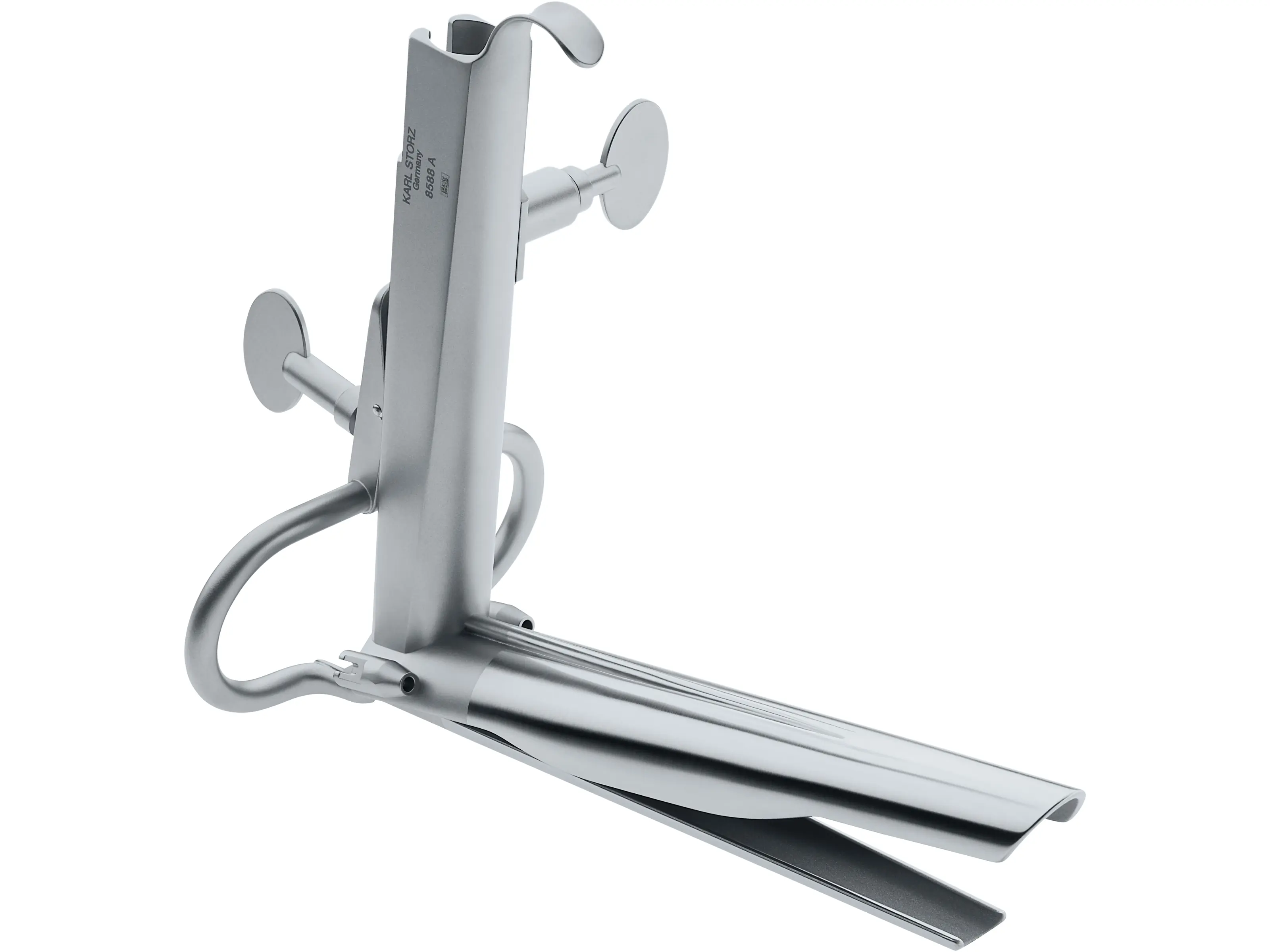

Operat. Laryngoscope. Adult.

Quantity:

Product details


  • Two set screws enable distension and adaptation to the anatomy. The lumen can be expanded from 18–30 mm with the lateral set screw. The front set screw also enables maximum distal spreading of the lower blade.
  • Easy insertion thanks to small dimensions of the laryngoscope with closed blades
  • Wide lateral slits maximize the working area for microsurgical instruments
  • The use of additional suction tubes to remove vapor maintains visibility during LASER surgery
  • Technical details
  • Documents & Films
  • Product group / field of application

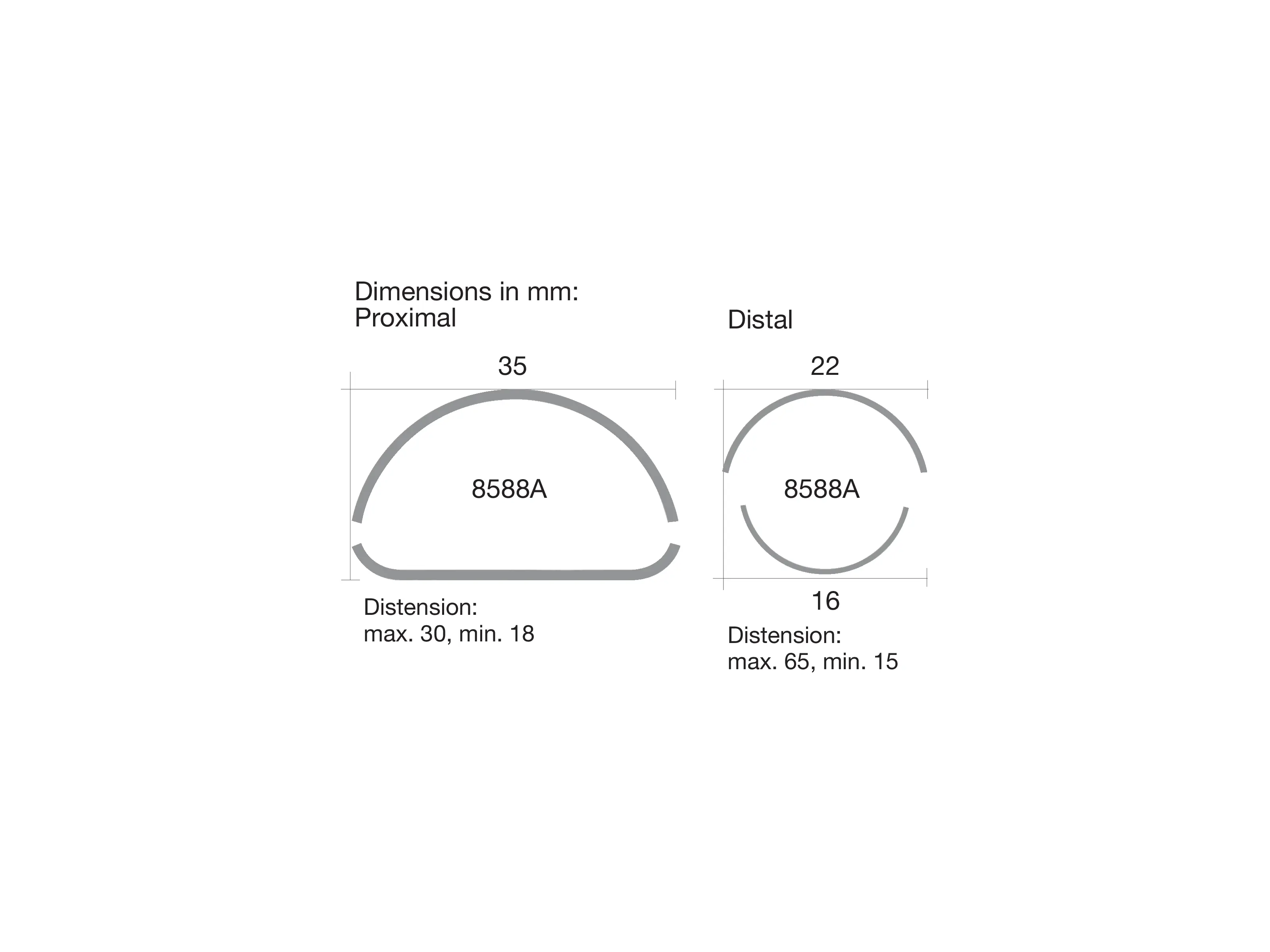

Inner diameter proximal (w x h)Max. distension: 28 mm x 35 mm; min. distension: 28 mm x 23 mm
Inner diameter distal (w x h)Max. distension: 22 mm x 65 mm; min. distension: 22 mm x 15 mm
Field of applicationAdults
AuthorWEERDA
ModelLarge
Total length18 cm
Special featureWith attached, adjustable battery handle and ventilation slots
