Item no: 10331BXK


Scope of delivery

Product details

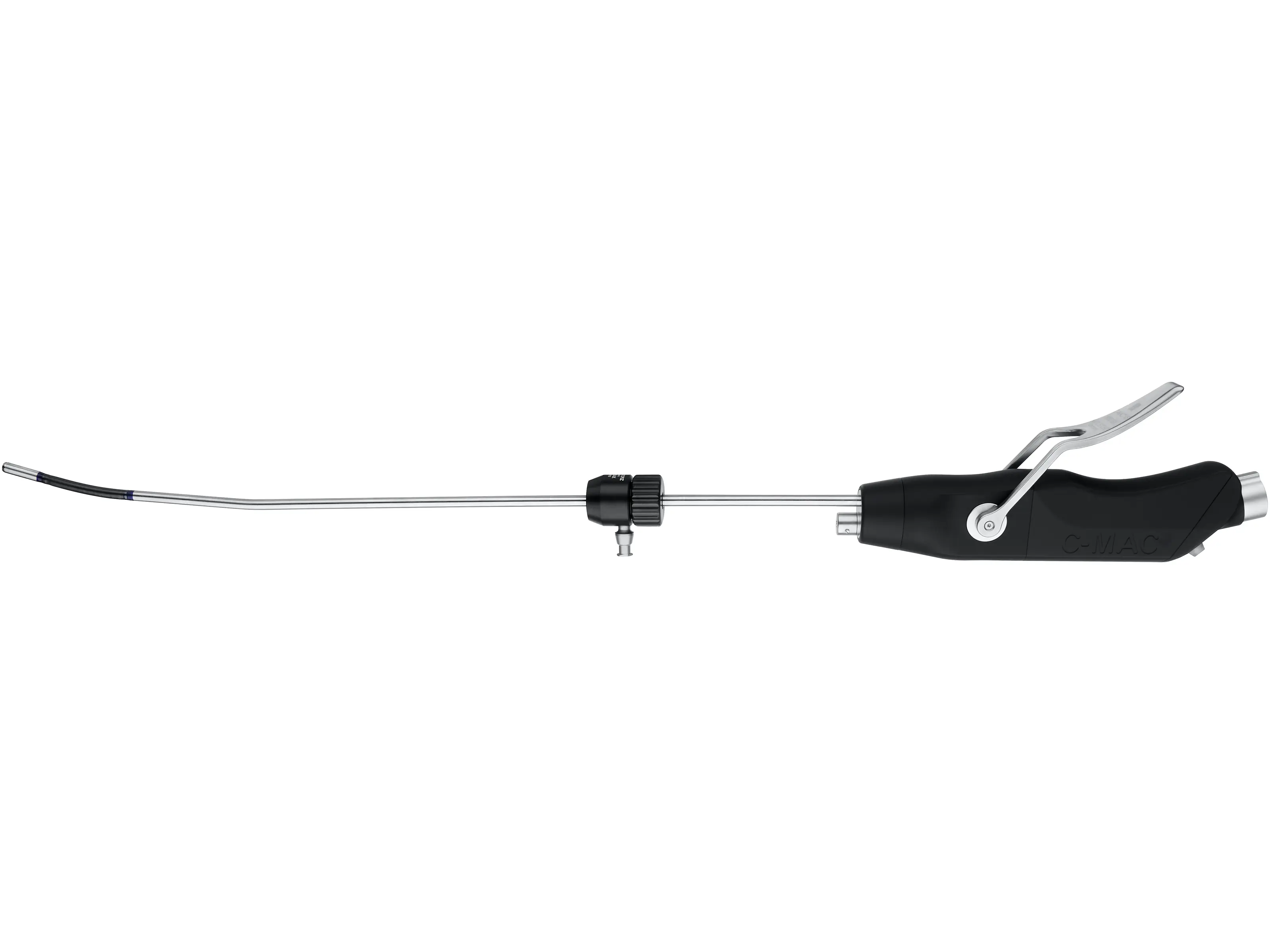

The C-MAC® Video Stylet – The Hybrid Intubation Endoscope

  • Suitable for in-hospital emergency situations and for patients with a restricted mouth opening
  • Continuous O2 flow via tube adaptor between the tube and endoscope
  • Technical details
  • Documents & Films
  • Product group / field of application
Laryngoscope shapestylet
Outer diameter at distal end5.5 mm
Shape of distal endWith deflectable tip
Recommended ETT diameter as of6 mm
System interfaceC-MAC®
Documentation optionYes
Direction of view100°
Working length41 cm
Resolution300 x 400 px
Length60 cm
Weight445 g
Deflection down
Deflection up90°
Angle of view10°
Deflection up with tube60°
