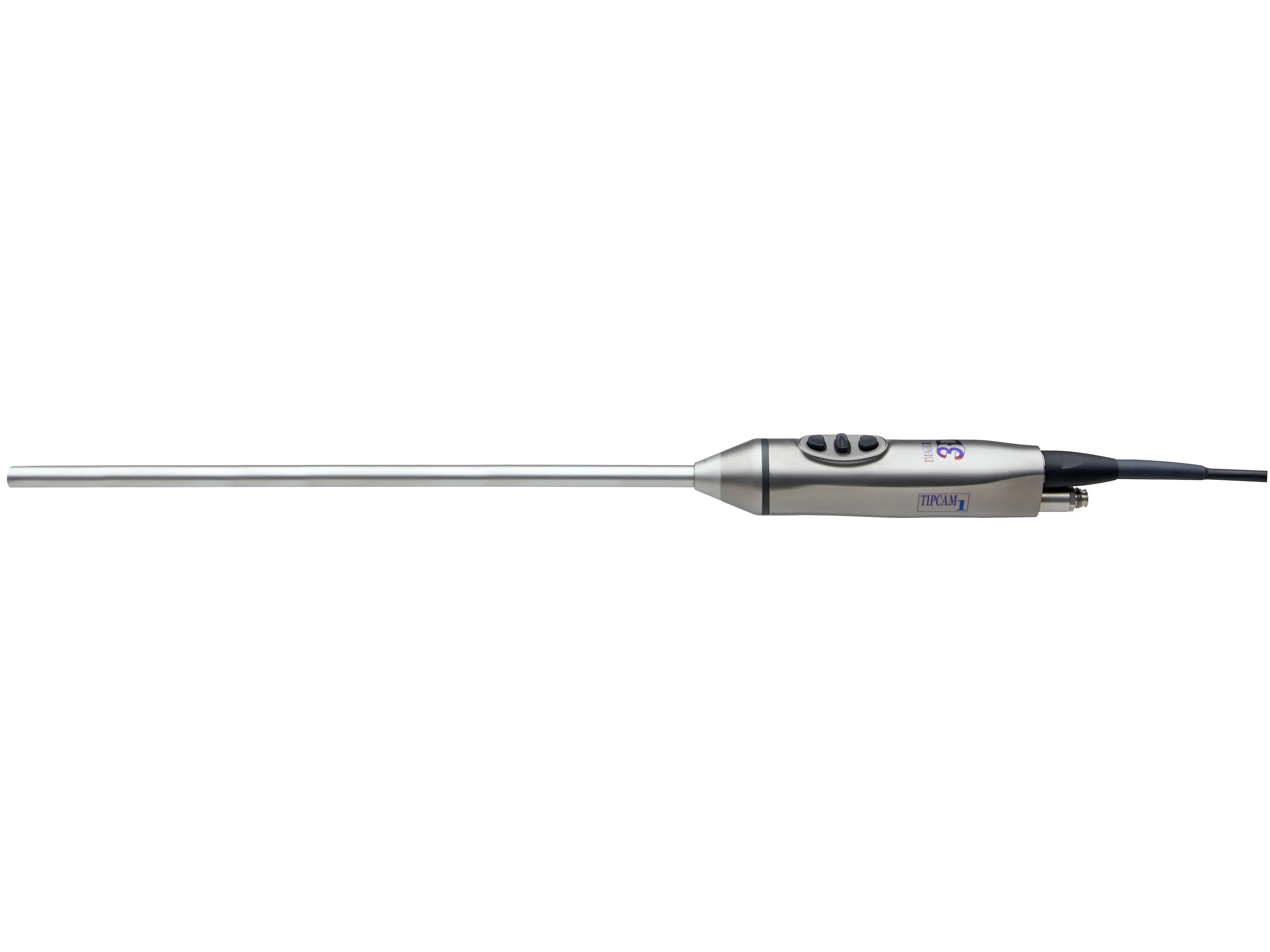

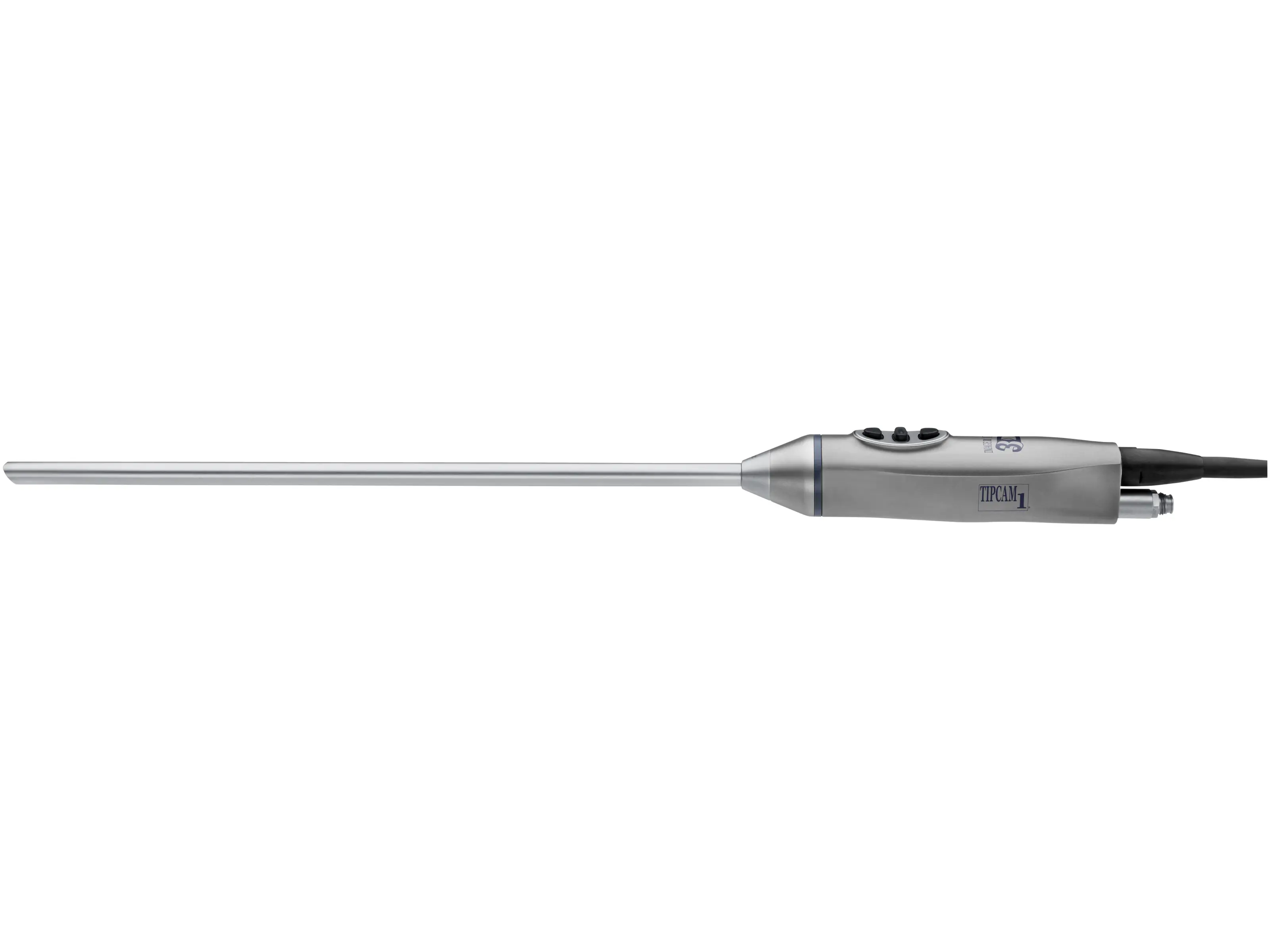

IMAGE1 S™ 3D provides surgeons with excellent depth perception. This 3D stereoscopic system is particularly helpful when performing activities that require good spatial vision. Thanks to the modular system design, existing 2D systems can be upgraded to 3D.
Available with 0° and 30° directions of view
Easy toggle from 3D to 2D
Easy integration into the IMAGE1 S™ platform
Three visualization technologies for easy tissue differentiation in 2D and 3D: CLARA: Homogeneous illumination CHROMA: Contrast enhancement SPECTRA: Spectral color shift and switch
Technical details
Documents & Films
Product group / field of application
Image sensor resolution
FULL HD

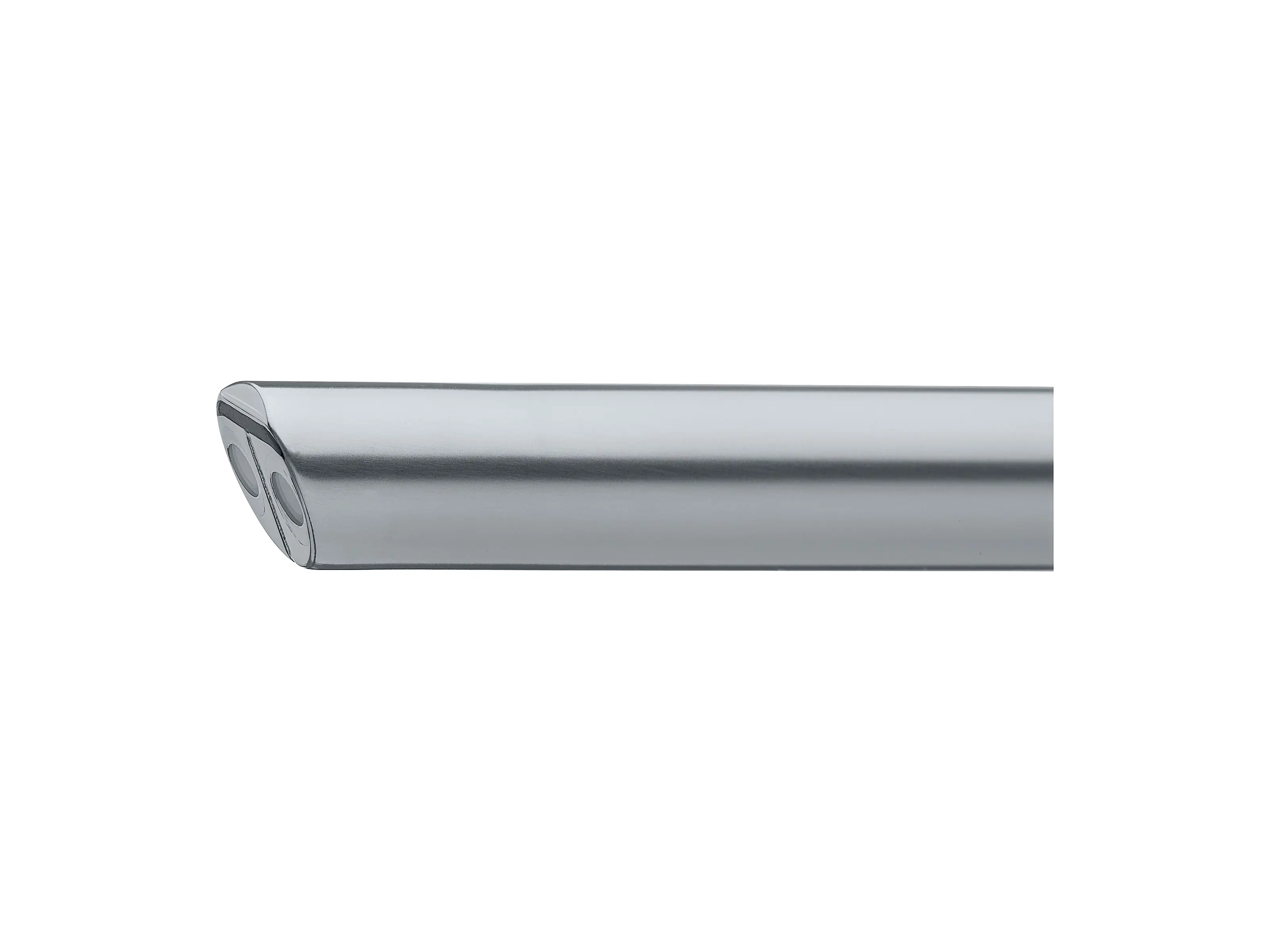

Direction of view
30°
Outer diameter
10.3 mm
Working length
320 mm
Fluorescence imaging (NIR/ICG)
No
Connection
D3-Line
Weight
420 g

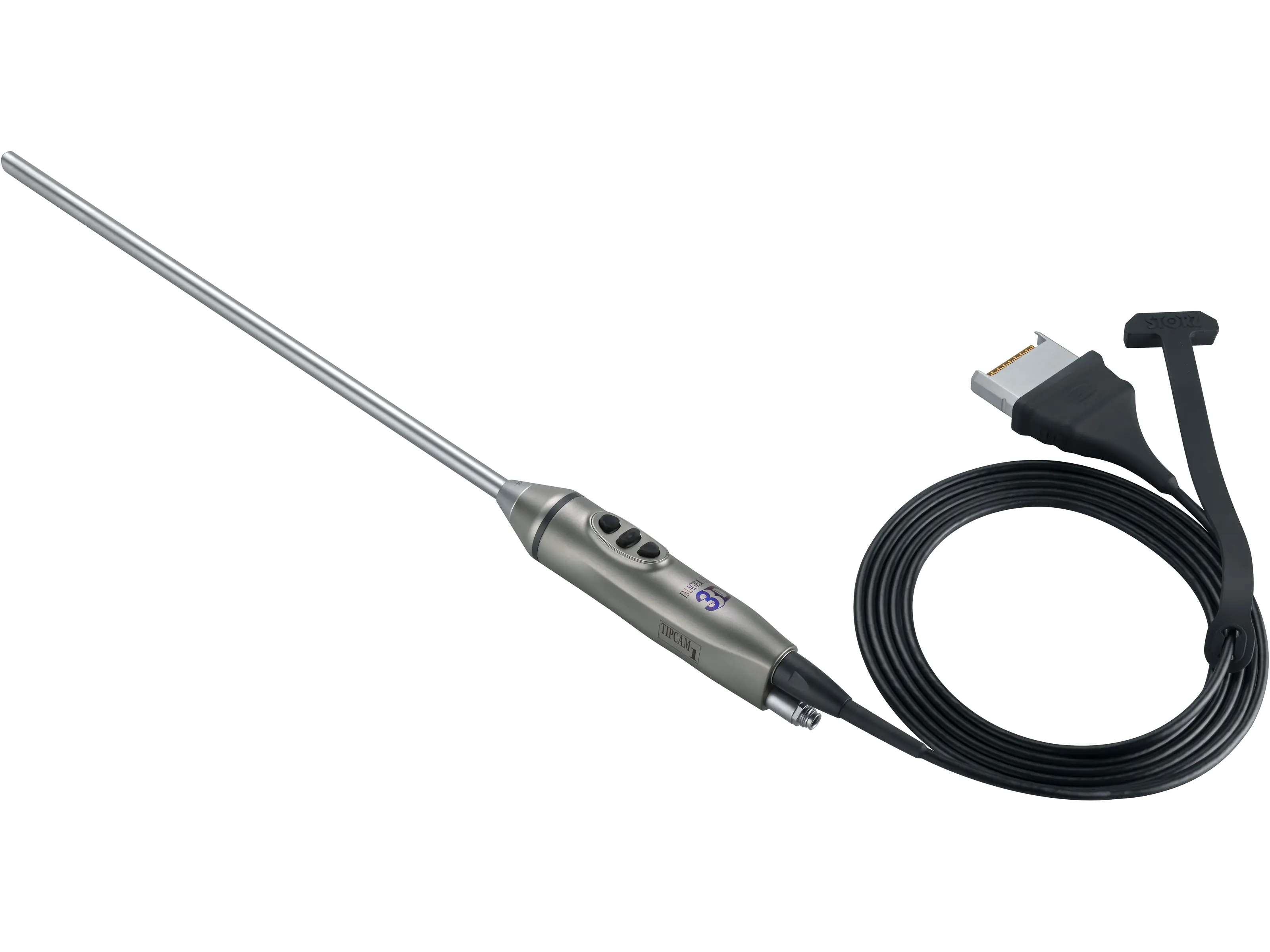

Cable length
300 cm
Cable routing
Straight
Frame rate
50 / 60 Hz
Image sensor type
CMOS
Number of image sensors
2
Zoom function
Yes, digital

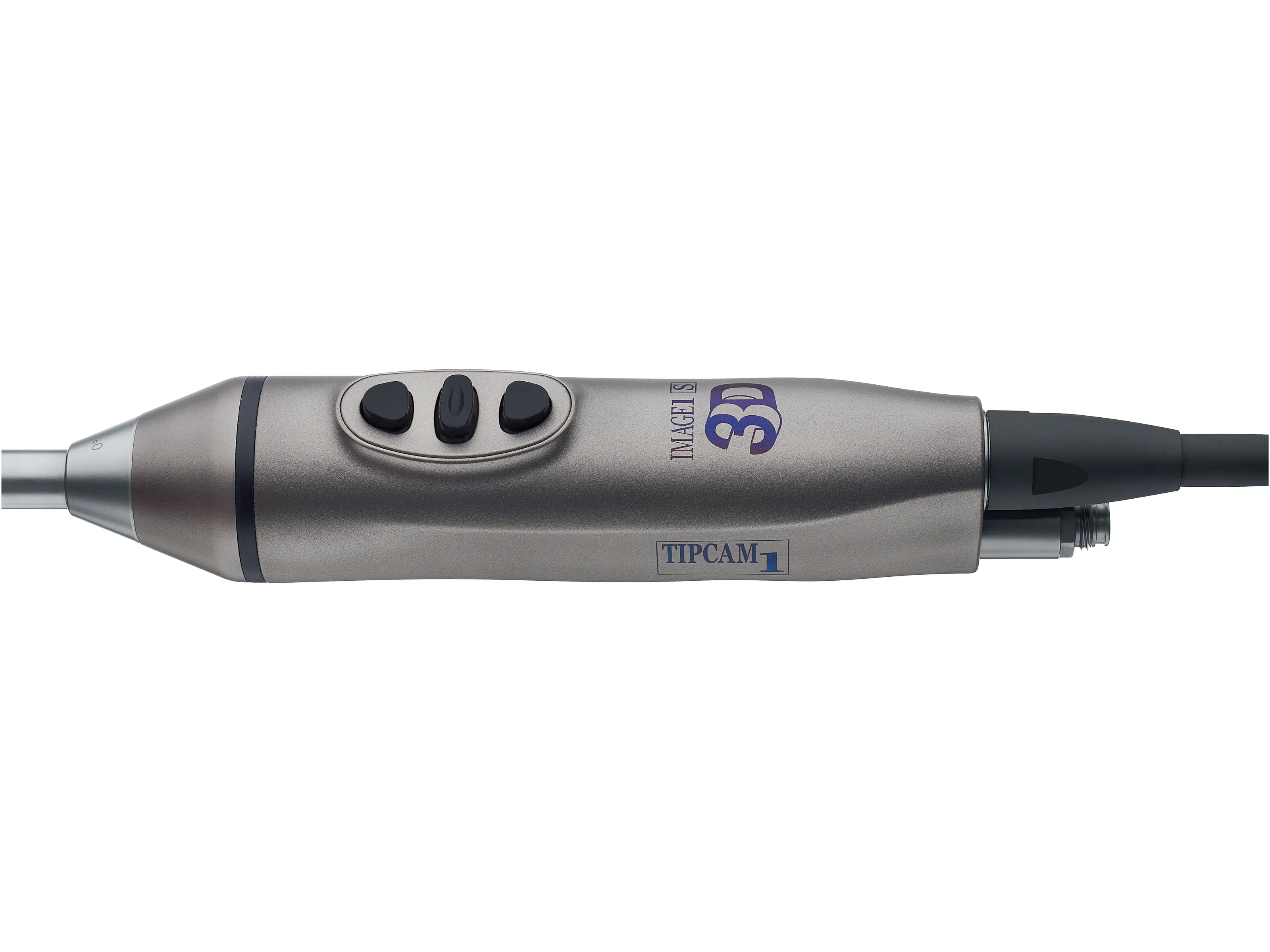

Camera head buttons
3 Buttons, 2 freely programmable
Autoclavable
Yes
H2O2 (hydrogen peroxide)
Yes
S-Technologies
CLARA, CHROMA, SPECTRA A + B
Degree of protection in conjunction with the IMAGE1 S™ camera control unit
