Product details

Flexibility in Visualization

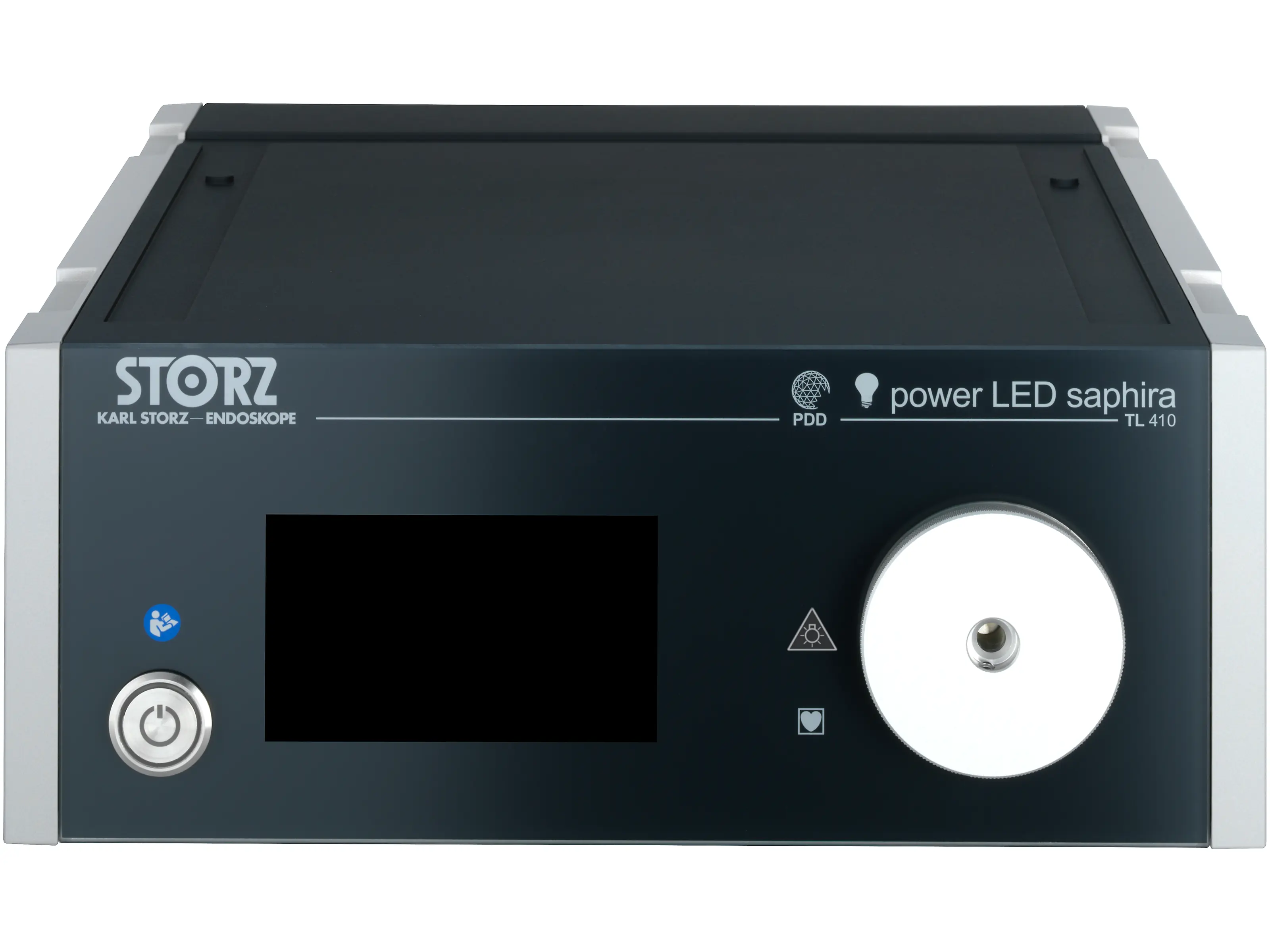

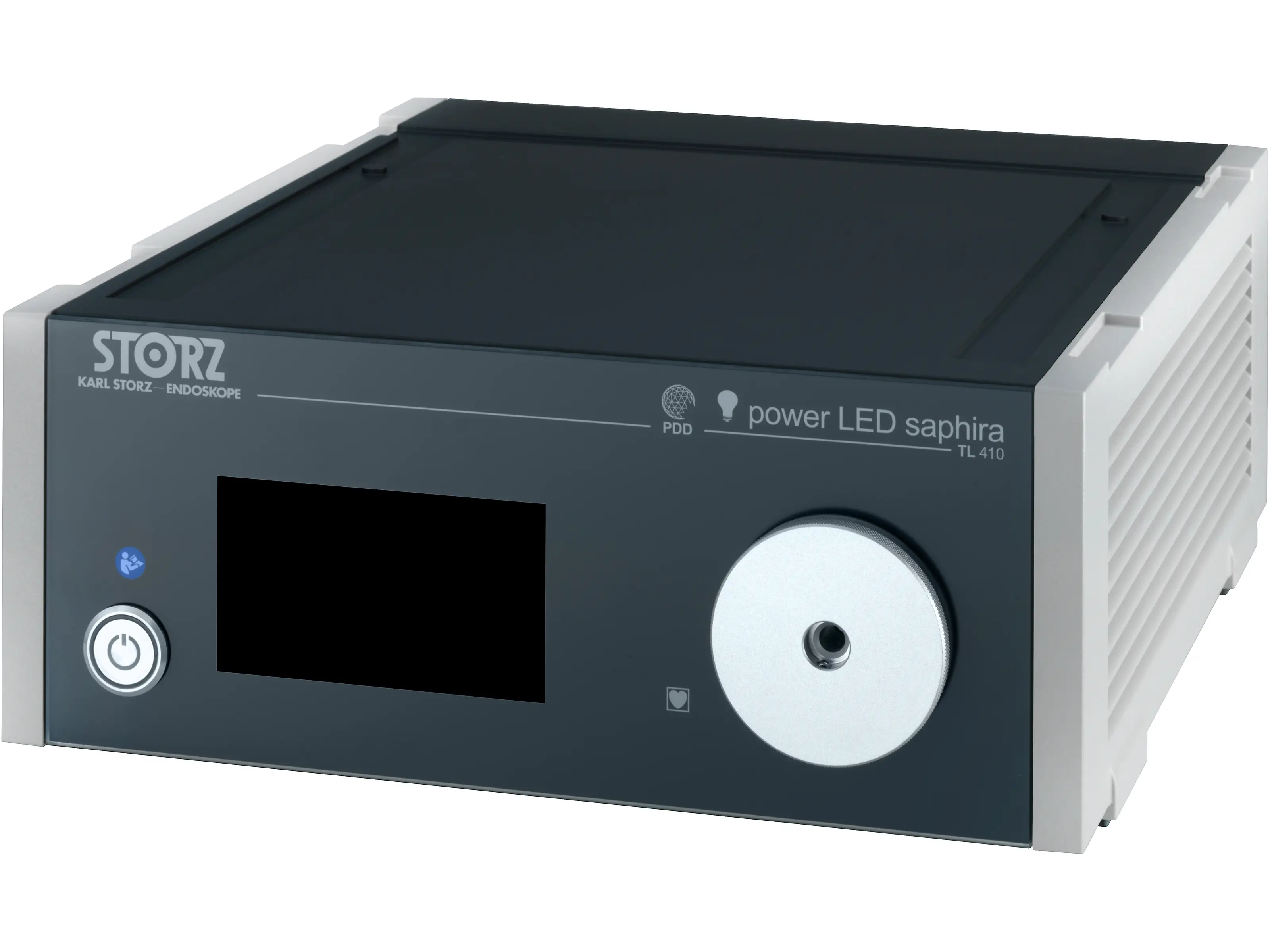

The POWER LED Saphira™ is a light source based on LED technology. It can be used for both white light and fluorescence applications in blue light for visualizing tumor cells.
The POWER LED Saphira™ offers a number of advantages and new possibilities.

Laser-free LED light source for white light and blue light excitation
LED-based light source with two LEDs:
- 1x White light LED: Enhanced white light intensity*
- 1x Blue light LED: Higher emission of light intensity*
Both applications possible with an autoclavable light cable
Min. 30,000 hours of lamp service life
Significantly quieter than D-LIGHT C
New user interface with touch screen

_{* in comparison to the previous model (D-LIGHT C)}

Technical details
Documents & Films
Product group / field of application

Fluorescence imaging (NIR/ICG)	No
Fluorescence imaging (Blue Light Imaging, BLI)	Yes
Control via touch screen	Yes
Illumination technology	LED
Average lamp service life	30000 h
Integrated pump for air insufflation	No
Color temperature approx.	5700 K
Unit communication KS HIVE®	Yes
Unit communication SCB	No
Light intensity adjustment	Automatic via HIVE and manual
Weight	7.4 kg
Width	305 mm
Height	120 mm
Depth	370 mm
Power supply	100 - 125 / 220 - 240 VAC
IP protection class	IPX0
Electrical protection class	Protection class 1
KARL STORZ light outlet	Yes
Power consumption	180 VA
Line frequency	50/60 Hz
Degree of safety	CF
Degree of safety with KARL STORZ light cables	CF-Defib
USB port type	Yes
Wipe disinfection	Yes
Brand	Saphira™
Electrical protection class	I
