Product details

Flow rate of up to 50 l/min
Integrated smoke evacuation (with desufflation)
Gas heating
Gas humidification
Pediatrics mode: small adjustment increments in the lower output range as well as safety limits for pressure and flow
Dedicated modes for proctological procedures (TEO and TaTME) with special algorithms for insufflation
Dedicated modes for endoscopic vein harvesting with special algorithms for insufflation

Brand	ENDOFLATOR®
Intracavitary pressure (mmHg)	High Flow: 1-30, Pediatrics: 1-15, TEO: 1-20, taTME: 1-20, EVH: 1-15
Flow l/min	High Flow: 1-50, Pediatrics: 0.1-15, TEO: 1-30, taTME: 1-30, EVH: 1-10
Hose heating	Yes
Humidification	Yes
Integrated smoke evacuation	Yes
Desufflation	Yes
Wipe disinfection	Yes
Power supply	100 – 240 VAC
Line frequency	50/60 Hz
Power input	105 Watt
Current consumption at 240 VAC max.	0.44 D
Current consumption at 100 VAC max.	1.05 D
Gas input (max. pressure)	80 bar
Unit communication SCB	No
Insufflation connection	1
Gas connection on the back of the device	American
Control via touch screen	Yes
Width	305 mm
Height	150 mm
Depth	370 mm
Weight	10.7 kg
Degree of safety	CF
IP protection class	IP21
Unit communication KS HIVE®	Yes
Electrical protection class	I

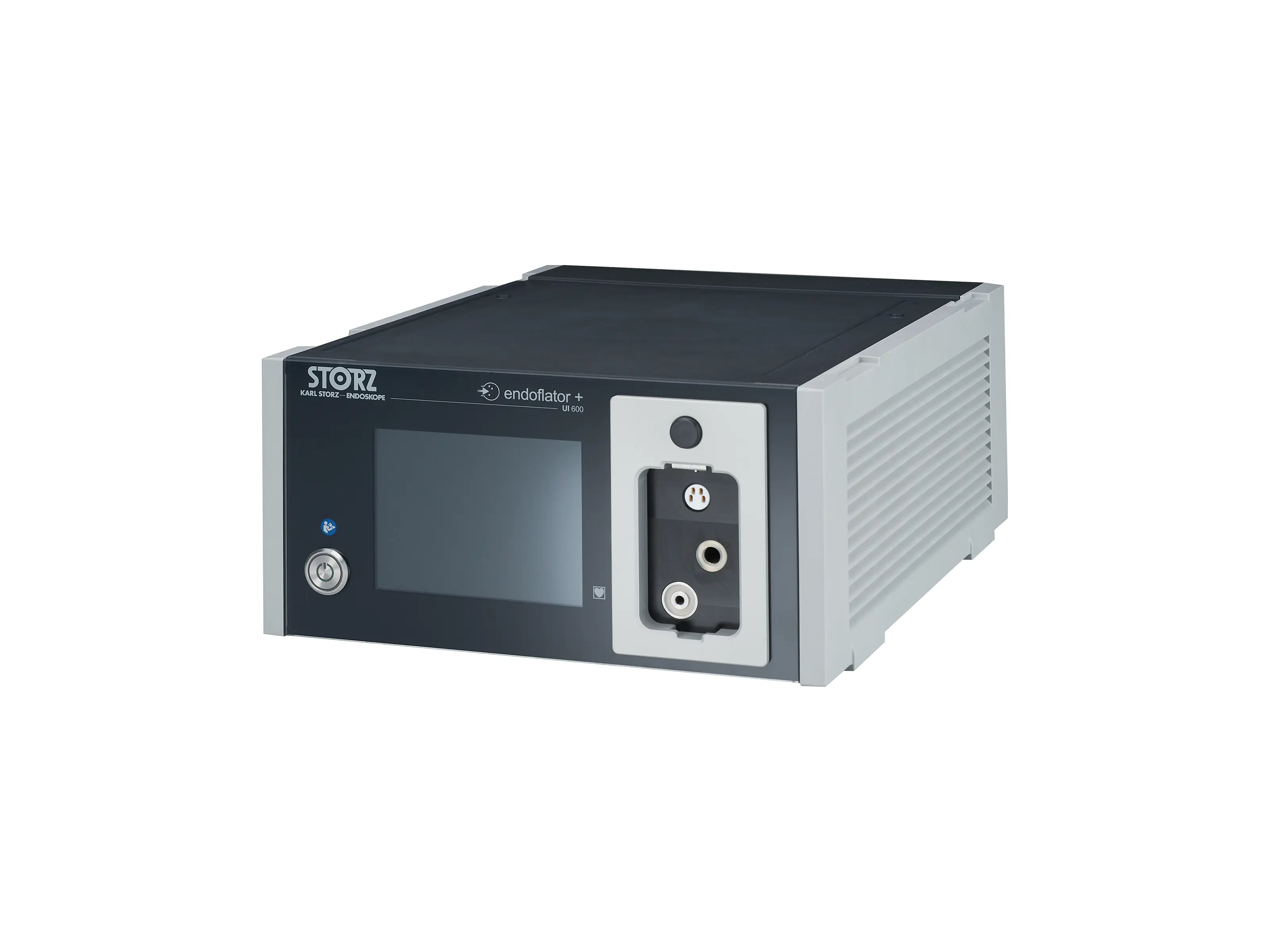

ENDOFLATOR +
