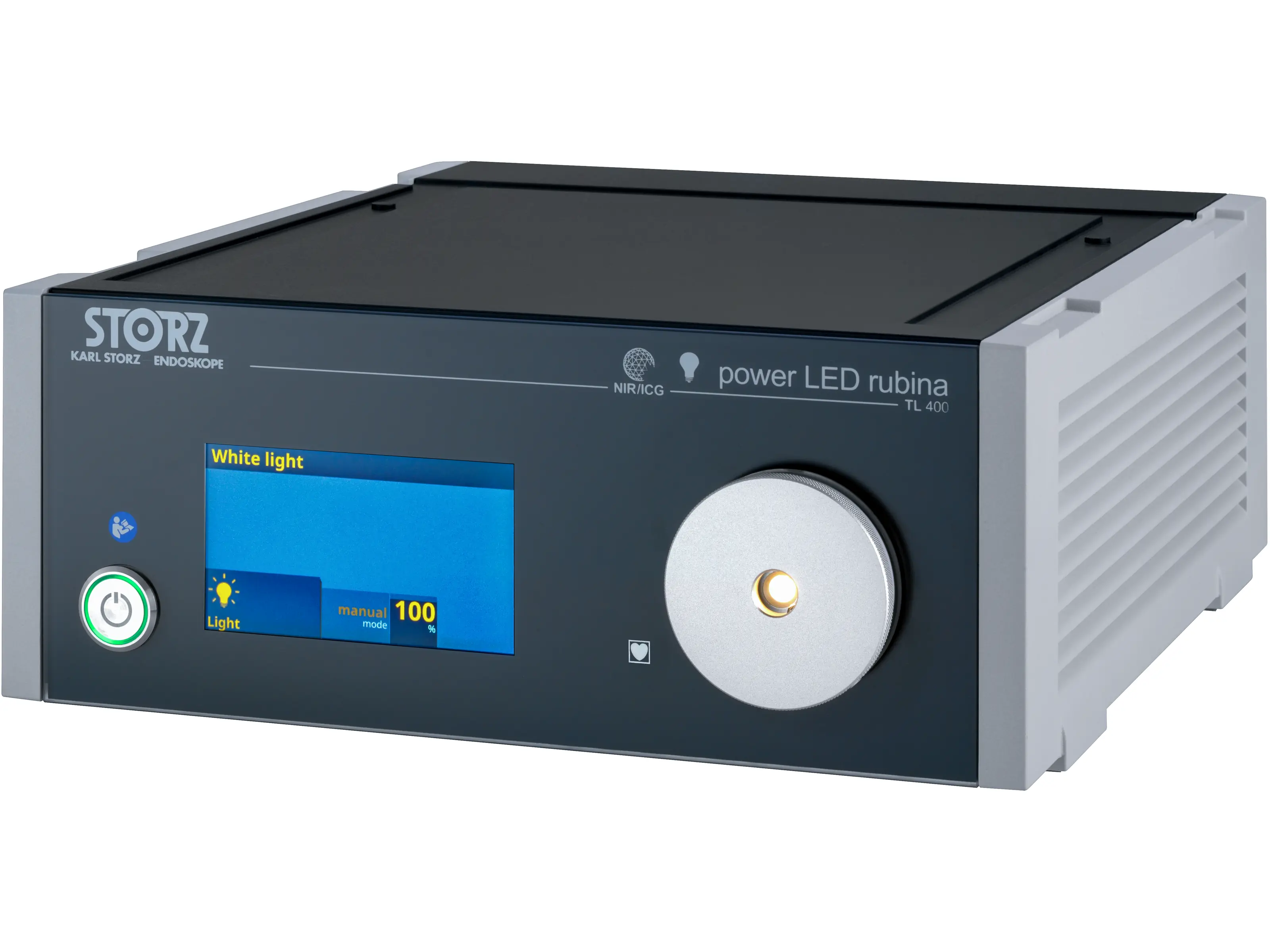

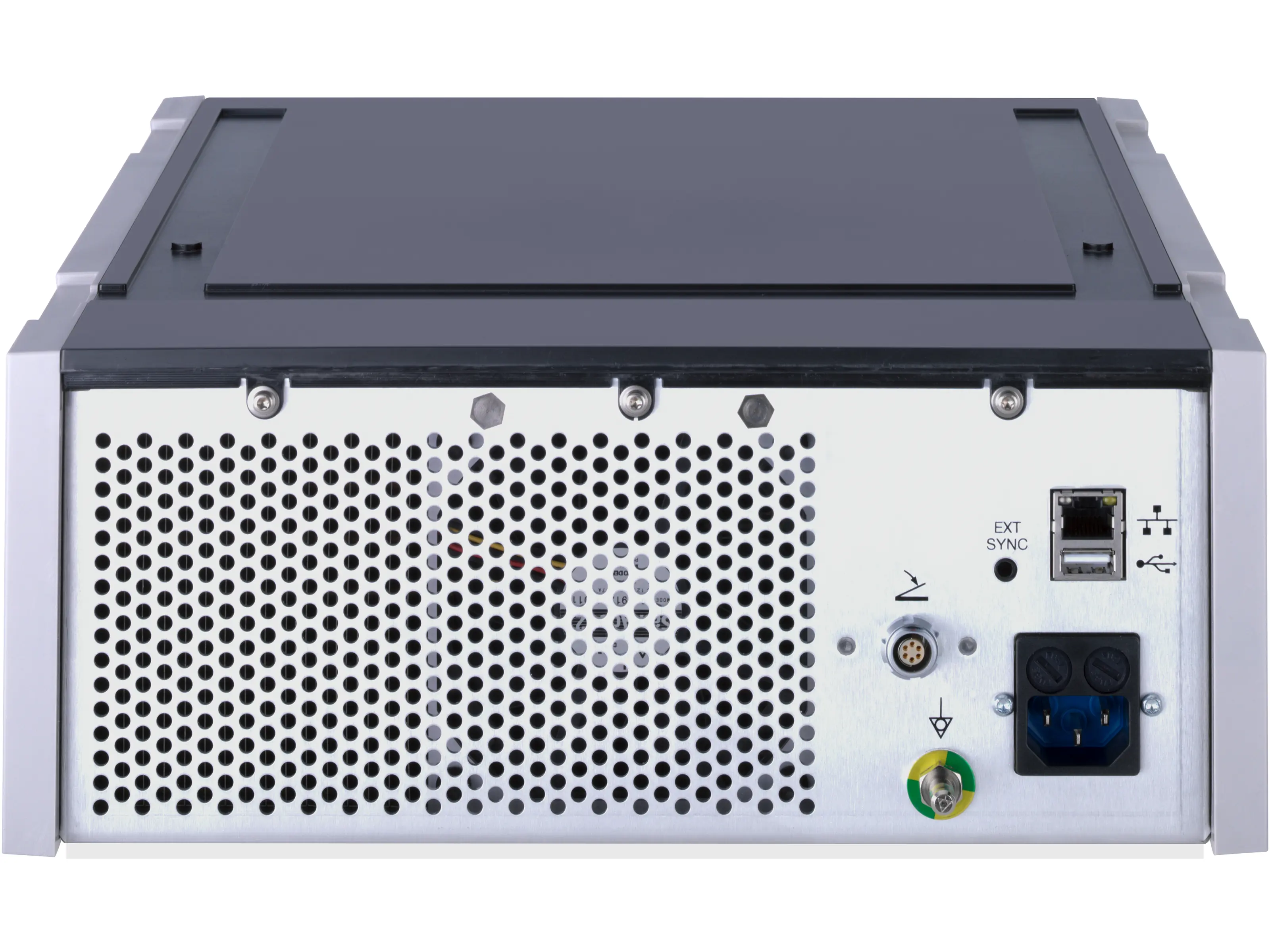

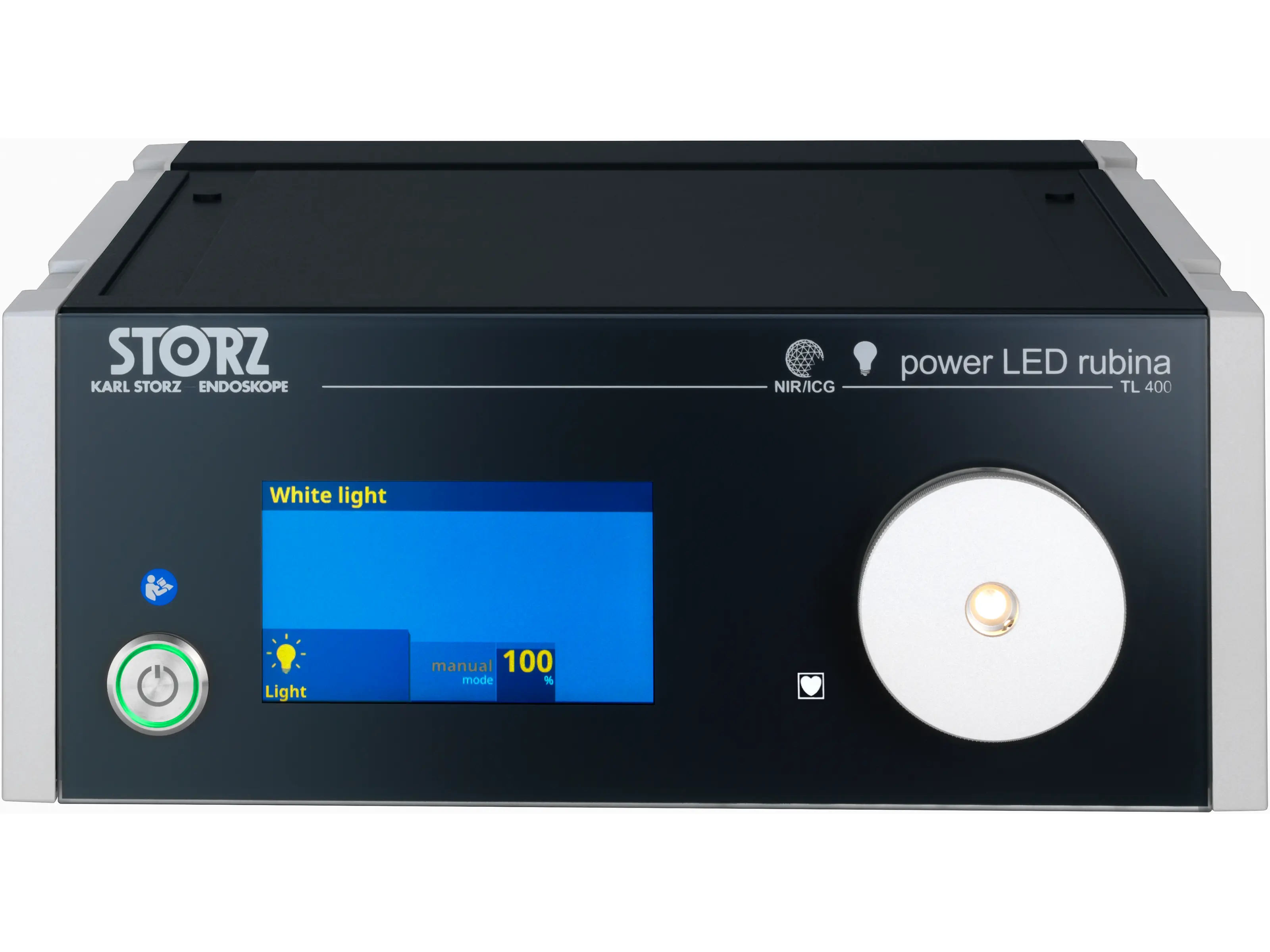

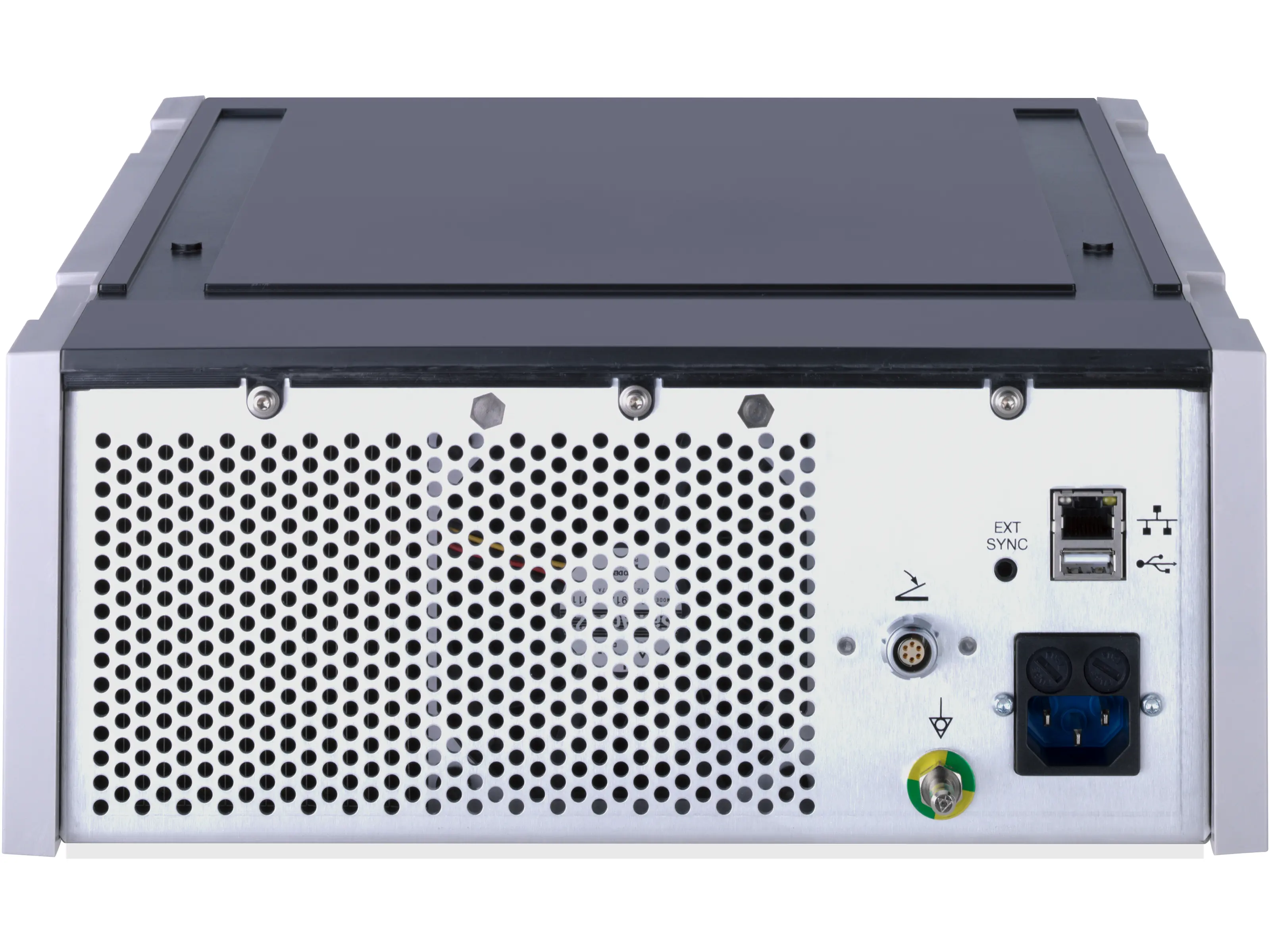

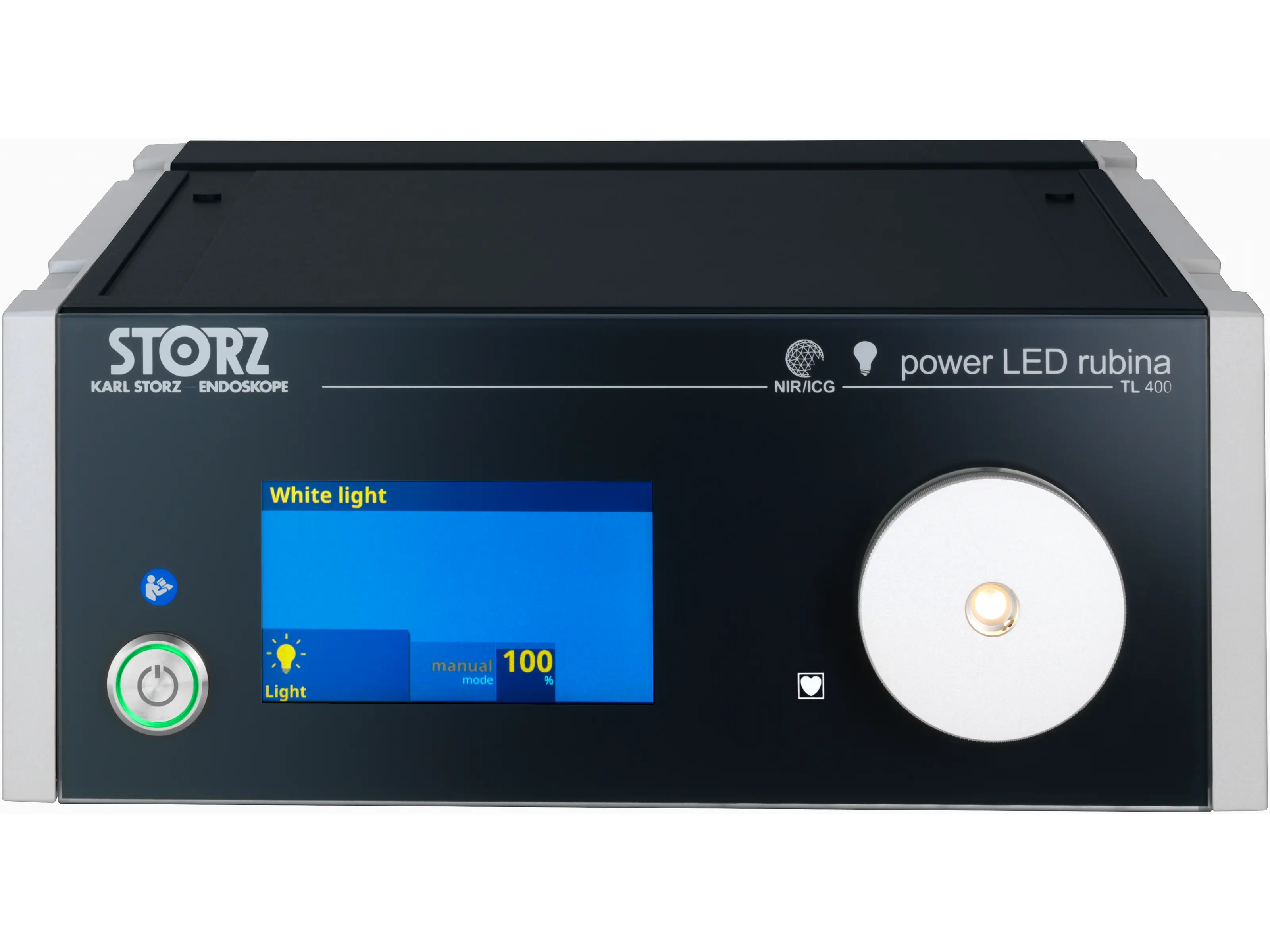

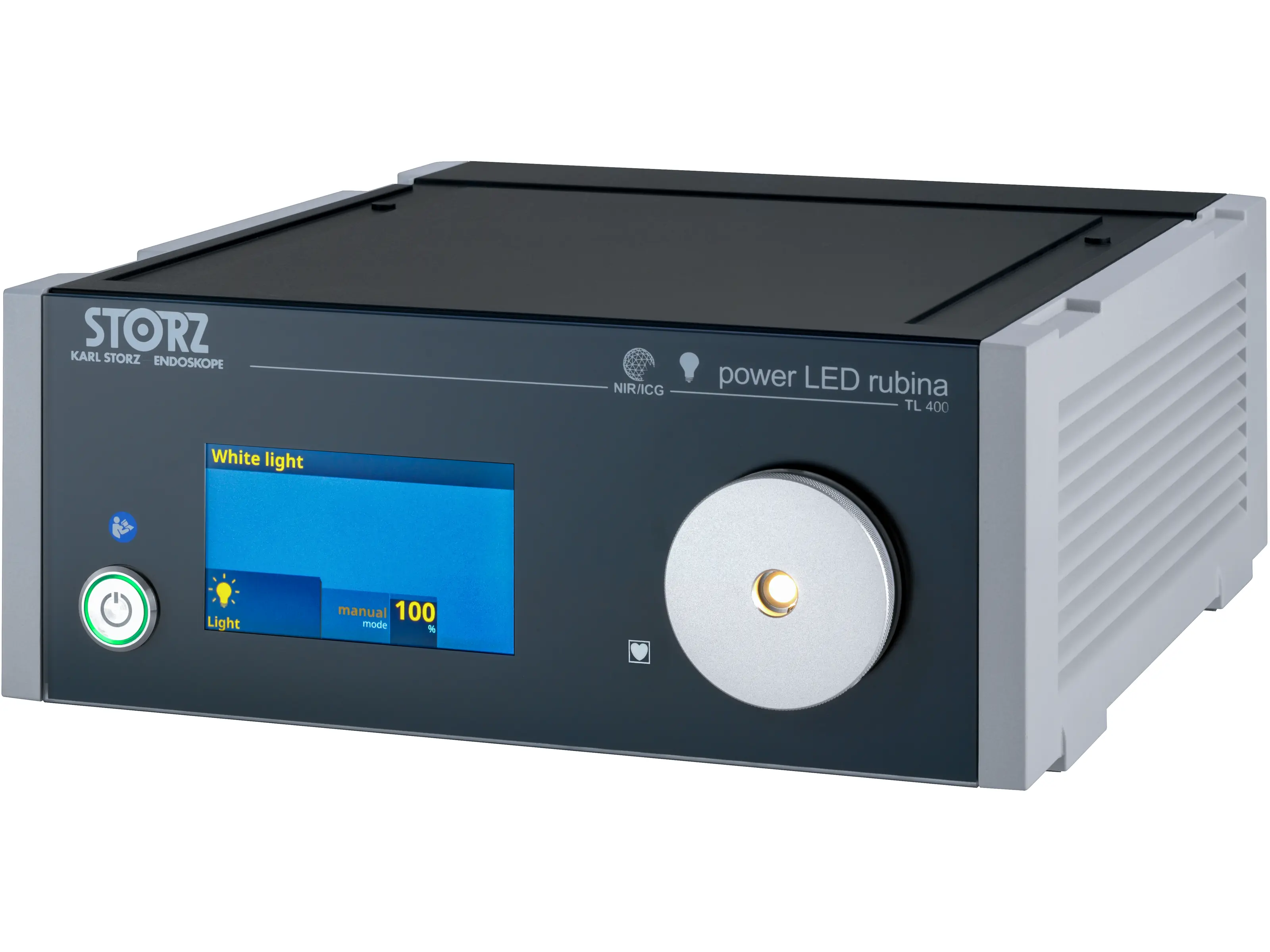

POWER LED Rubina® – The LED Light Source for White Light and NIR/ICG Applications

Power, efficiency, durability and flexibility are the hallmarks of the POWER LED Rubina® cold light source based on LED technology. The light source can be used for white light as well as fluorescence applications for displaying NIR/ICG or autofluorescence in the near infrared range.

Laser-free LED light source for white light and NIR/ICG excitation
OPAL1® NIR/ICG technology with new functionalities
Min. 30,000 hours of lamp service life
Straightforward user interface thanks to intuitive touch screen
Constant light intensity throughout the entire service life
Very low volume

Technical details
Documents & Films
Product group / field of application

Fluorescence imaging (NIR/ICG)	Yes
Fluorescence imaging (Blue Light Imaging, BLI)	No
Control via touch screen	Yes
Illumination technology	LED
Average lamp service life	30000 h
Integrated pump for air insufflation	No
Color temperature approx.	5700 K
Unit communication KS HIVE®	Yes
Unit communication SCB	No
Light intensity adjustment	Automatic via HIVE and manual
Weight	7.4 kg
Width	305 mm
Height	120 mm
Depth	370 mm
Power supply	100 - 125 / 220 - 240 VAC
IP protection class	IPX0
Electrical protection class	Protection class 1
KARL STORZ light outlet	Yes
Power consumption	220 VA
Line frequency	50/60 Hz
Degree of safety	CF
Degree of safety with KARL STORZ light cables	CF-Defib
Wipe disinfection	Yes
Electrical protection class	I
