The FULL HD camera platform IMAGE1 S™ offers surgeons a single system for all applications. As a modular camera platform IMAGE1 S™ combines various technologies (e.g., rigid, flexible and 3D endoscopy) in one system and can therefore be adapted to individual customer needs. Furthermore, near infrared (NIR/ICG) for fluorescence imaging, the integration of operating microscopes and the use of VITOM^® exoscopes is possible via the camera platform.

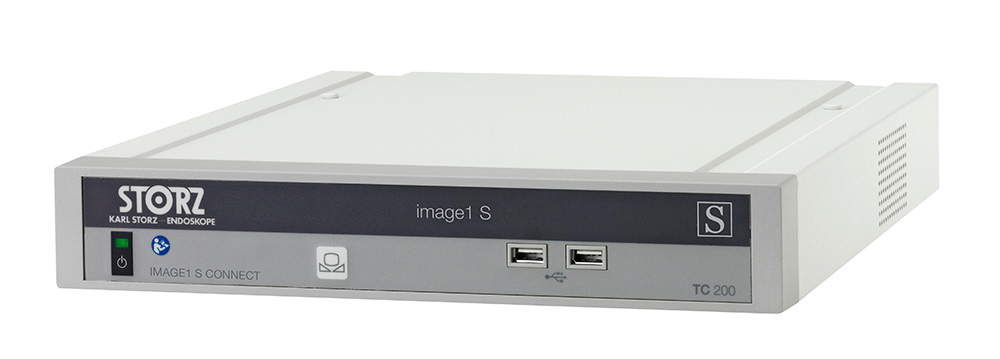

TC 200

IMAGE1 S CONNECT™

connect module, for use with up to 3 link modules, resolution 1920 x 1080 pixels, with integrated KARL STORZ-SCB and digital Image Processing Module, power supply 100–120 VAC/200–240 VAC, 50/60 Hz

inlcuding:
400 A Mains Cord, length 300 cm
20040089 DVI-D Connecting Cable, length 300 cm
20090170 SCB-Connecting Cable, length 100 cm
20040282 USB Flash Drive, 32 GB 2004020 Silicone Keyboard, with touchpad

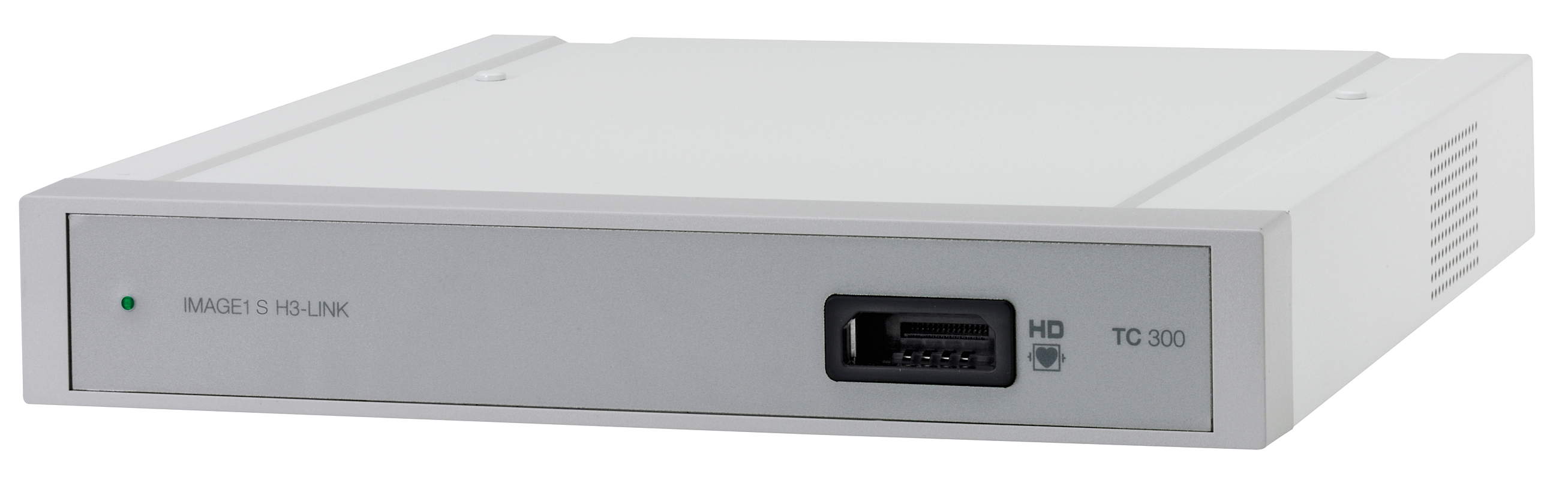

TC 300

IMAGE1 S H3-LINK

link module, for use with IMAGE1 FULL HD threechip camera heads, power supply 100–120 VAC/200–240 VAC, 50/60 Hz

including:
400 A Mains Cord, length 300 cm
TC 011 Link Cable, length 20 cm, for use with IMAGE1 S CONNECT™ TC 200

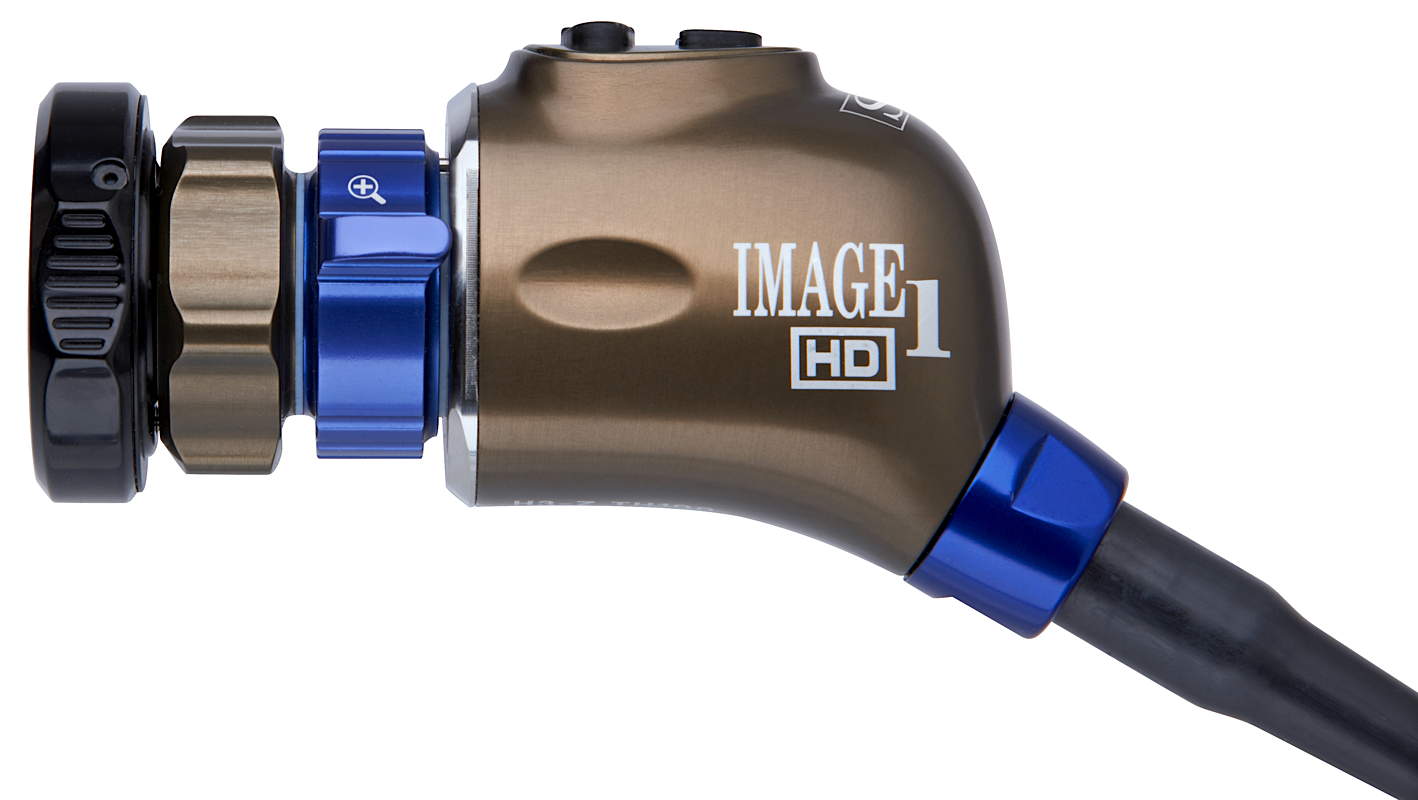

TH 100

IMAGE1 S H3-Z Three-Chip FULL HD Camera Head

progressive scan, soakable, gas- and plasma-sterilizable, with integrated Parfocal Zoom Lens, focal length f = 15–31 mm (2x), 2 freely programmable camera head buttons, for use with IMAGE1 S™ and IMAGE 1 HUB™ HD / IMAGE1 HD

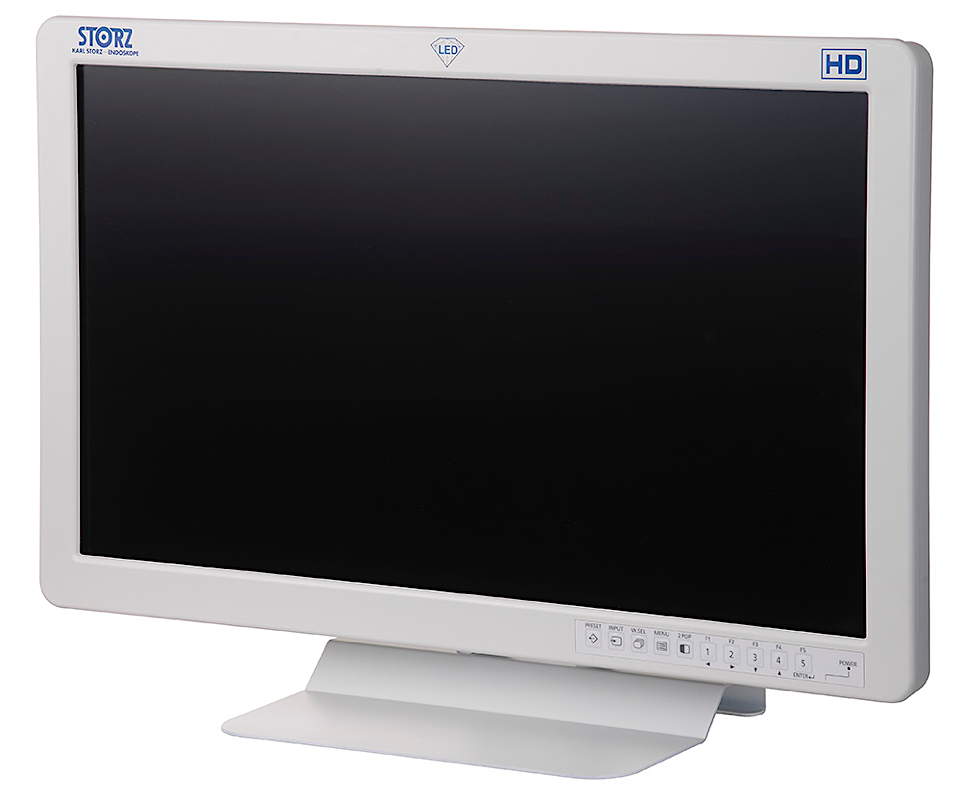

9826 NB

26" FULL HD Monitor

wall-mounted with VESA 100 adaption, color systems PAL/NTSC, max. screen resolution 1920 x 1080, image format 16:9, Video inputs: DVI, 3G-SDI, VGA, S-Video, Composite, Video outputs: DVI, 3G-SDI, Composite, power supply 100–240 VAC, 50/60 Hz, 5 V DC output (1 A)

9826 SF

Monitor Stand

suitable for 26" and other monitors, basic monitor stand, tiltable, rotation +/-30, disinfectable, color white, e.g. for use with 26" FULL HD Monitor 9826 NB or 26" 3D Monitor 9826 NB-3D
