Item no: 8404HX

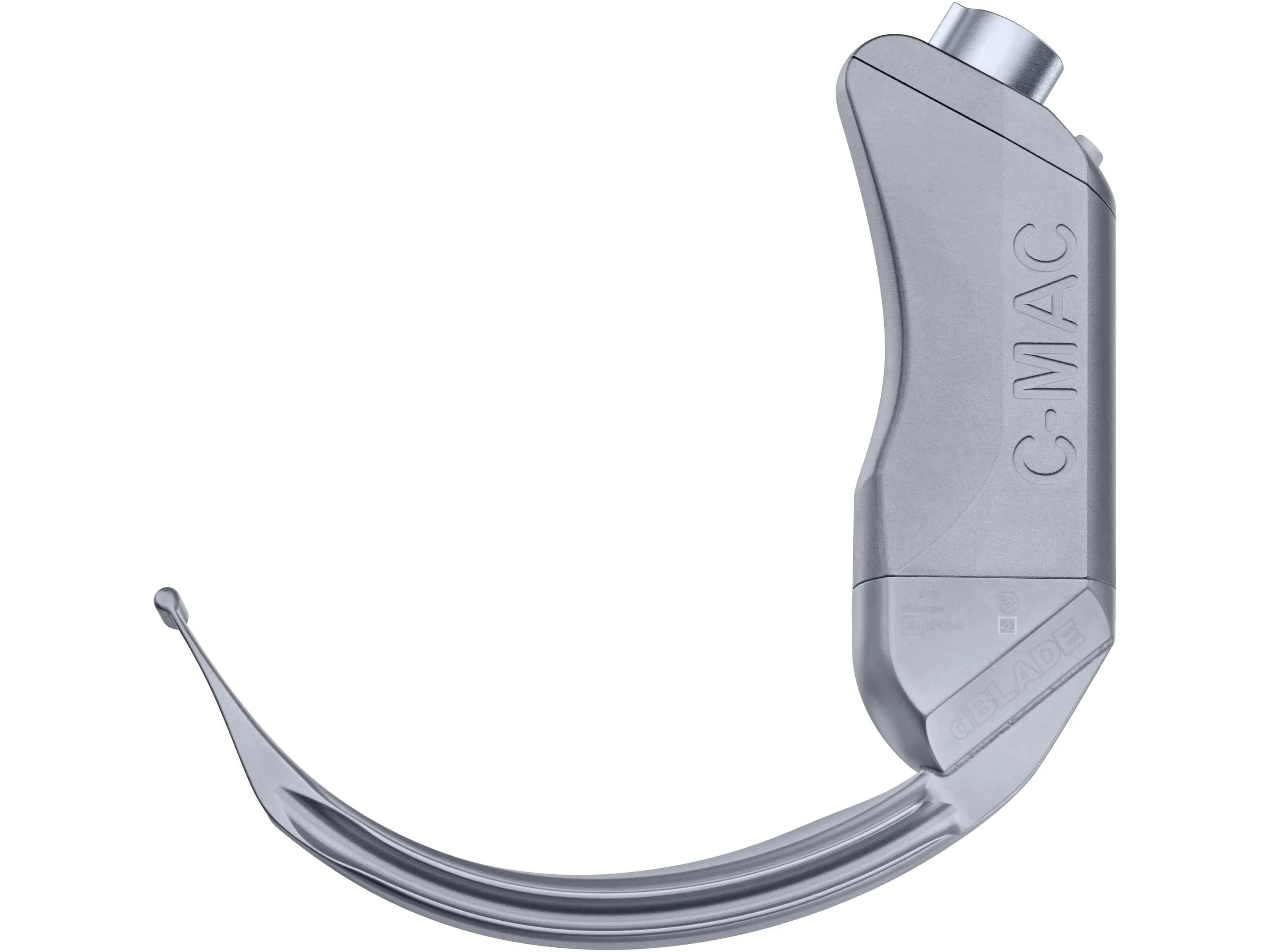

C-MAC Video Laryngoscope D-BLADE

Quantity:

Product details

The C-MAC® HD Series – For Optimized Visualization


  • Visualization of intubation in HD
  • Lightweight and robust design due to titanium handle
  • Plug & play with our universal C-MAC® system interface
  • Multifunctional button for documentation in HD
  • Technical details
  • Documents & Films
  • Product group / field of application
Laryngoscope shapeHyperangulated
Direction of view
Working length109 mm
Width of handle28 mm
Width at distal end19 mm
Length151 mm
Height156 mm
Field of applicationAdults
Technology / visualization typeCMOS
System interfaceC-MAC®
Recommended min. catheter introduction size16 Fr.
Recommended max. catheter introduction size18 Fr.
Resolution1280 x 800 px
Illumination2x LED, white, 1W
IP protection classIPX8
Documentation optionYes
Angle of view70°
BrandC-MAC®
